Schneider Electric Schneider Electric TSXPSY2600M Power Supply Module
Schneider Electric TSXPSY2600M Power Supply Module Configured for regulated AC-to-DC power conversion in Modicon backplane architectures, the Schneider Electric TSXPSY2600M (TSXPSY2600M power supply module) provides direct physical/electrical execution for supplying 5 VDC and 24 VDC rails within Modicon Premium rack-based systems. HardwareSpecifications Parameter Specification ModelBrand Schneider Electric TSXPSY2600M PowerConsumption 100..240 V AC input, 300 mA @ 240 V / 500 mA @ 100 V Input Frequency 50/60 Hz (47..63 Hz limits) Inrush Current 37 A @ 100 V, 75 A @ 240 V Secondary Outputs 5 V DC (5 A), 24 V DC auxiliary outputs Total Useful Power 26 W Protection Fuse 4 A (5 x 20 mm), overload, short-circuit, overvoltage Backplane Power Distribution and Firmware Compatibility Layer The TSXPSY2600M interfaces with Modicon Premium backplane architecture, delivering regulated DC rails to distributed I/O and CPU modules via internal bus coupling. Backplane communication is synchronized through deterministic rack-level timing, ensuring stable module enumeration and power sequencing during system initialization. Firmware and module recognition sequences rely on consistent voltage stabilization across the 5 V DC rail, enabling predictable bootstrapping of PLC CPU and I/O modules. Backplane load distribution must remain within rated 5 V DC current limits to prevent bus instability or module reset events under dynamic I/O density scaling conditions. Frequently Asked Questions Q: Can the TSXPSY2600M be hot-swapped under load?A: The module is not designed for live hot-swapping. Removal under energized backplane conditions may cause voltage collapse across 5 V DC rails and reset connected CPU/I/O modules. Q: What is the limitation of the 5 V DC backplane supply?A: The 5 V DC output is limited to 5 A total. Exceeding this load can trigger internal protection shutdown or unstable backplane signaling. Q: Does the module support redundancy operation?A: Redundant configuration is not inherent to the TSXPSY2600M. System-level redundancy depends on external architecture design within the Modicon Premium platform. FieldInstallation Guidelines Ensure AC input is isolated before installation. Mount the module securely within the designated Modicon Premium rack slot to maintain backplane alignment integrity. Verify correct seating of the connector to prevent partial contact on the DC bus pins. Maintain proper segregation between AC input wiring and low-voltage DC backplane lines. Shielded grounding practices should follow rack grounding terminals to minimize conducted noise across the power distribution path. Do not exceed rated current draw on either 5 V DC or 24 V DC outputs during commissioning.
$200.00 $100.00
-
Schneider Electric BMEH582040 Modicon M580 Schneider Electric Redundant Processor Module
Schneider Electric BMEH582040 Redundant Processor Module Configured for redundant CPU execution and high-availability control in Modicon M580 automation architecture, the Schneider Electric BMEH582040 (BMEH582040 redundant processor module) provides direct physical and communication execution within Ethernet-based PLC backplane and remote I/O synchronization systems. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMEH582040 OperatingTemp 0 to 60 degC PowerConsumption 270 mA at 24 V DC Processor Architecture Redundant CPU module (HSBY) Communication Interfaces 1 x Ethernet TCP/IP service port, 2 x Ethernet TCP/IP device network, 1 x Ethernet HSBY port, USB mini-B Remote I/O Capacity Up to 8 remote I/O stations (2 racks per X80 remote drop) Distributed Device Capacity Up to 64 devices Memory 8 MB program RAM, 768 kB data RAM, 10 kB system RAM, 4 GB expandable flash Task Structure 1 fast periodic task, 1 cyclic/periodic master task Instruction Performance Up to 10 Kinst/ms (Boolean), 7.5 Kinst/ms mixed load Environmental Rating 0 to 60 degC operating, -40 to 85 degC storage Schneider Electric Redundant Control and Ethernet Backplane Synchronization The module operates within a dual-processor redundant execution scheme using high-speed HSBY synchronization over dedicated Ethernet interconnect. Within the Schneider Electric Modicon M580 platform, deterministic execution is maintained through segmented Ethernet TCP/IP channels separating service traffic from device-level I/O scanning. Backplane communication supports parallel redundancy alignment between primary and standby processors, ensuring continuous task state replication during switchover events. Firmware execution integrity is dependent on synchronized flash image alignment across both processor nodes, with Ethernet-based heartbeat monitoring governing failover arbitration logic. Frequently Asked Questions Q: Does the BMEH582040 support hot-swapping during runtime operation?A: The processor module is designed for redundant operation; however, hot-swap behavior is governed by rack configuration and system-level redundancy state. CPU replacement typically requires controlled redundancy transfer to standby before physical removal. Q: How is redundancy synchronization handled between primary and standby processors?A: Synchronization is performed via dedicated HSBY Ethernet channel, continuously mirroring system memory, task state, and I/O image tables between both processors. Q: What is the effect of Ethernet device network separation?A: Separation of service and device networks isolates configuration traffic from real-time I/O scanning, reducing deterministic jitter in control execution cycles. Field Installation Guidelines Ensure complete removal of 24 V DC supply before module insertion or removal. Verify correct alignment of HSBY redundant communication interface before seating the module into the rack. Maintain shielded Ethernet cabling with proper grounding at cabinet entry point to minimize EMI coupling. Separate service Ethernet and device network routing to avoid cross-traffic interference. Confirm firmware parity between redundant CPU pairs prior to system start-up.
$200.00 $100.00
-
Schneider Electric 140ERT85410Z | Expert Time Time-Stamping Module Schneider Electric
Schneider Electric 140ERT85410Z Expert Time Time-Stamping Module Configured for deterministic event time-stamping in Modicon Quantum platform, the Schneider Electric 140ERT85410Z (140ERT85410Z Expert Time Time-Stamping Module) provides direct physical/electrical execution of 16-channel digital input acquisition with hardware-based timestamp assignment. The module operates as a backplane-integrated acquisition card within the Modicon Quantum system, registering input state transitions with millisecond-level resolution and synchronizing time reference through external IRIG-B or DCF77 signals for system-wide temporal alignment. Suffix Breakdown & Model Matrix No validated manufacturer-provided suffix decomposition beyond catalog identifier 140ERT85410Z is defined in the source specification. No additional segmentation is applied. Hardware Specifications Parameter Specification Model 140ERT85410Z Brand Schneider Electric Dimensions 1 Quantum backplane slot OperatingTemp 0 degC to 60 degC PowerConsumption Backplane powered (exact value not specified) Channels 16 digital inputs Timestamp Resolution 1 ms Clock Sync IRIG-B / DCF77 Input Voltage Range 24 VDC to 125 VDC (configuration dependent) Isolation Channel-to-backplane optocoupler isolation Event Buffer Onboard non-volatile event storage Backplane Bus Timing and Deterministic Acquisition Behavior The module interfaces with the Modicon Quantum backplane using deterministic bus arbitration typical of Schneider Electric PLC architectures. Timestamp capture is executed at the input stage prior to CPU scan cycle integration, reducing dependency on scan-time resolution. Backplane communication supports synchronized event propagation across CPU and I/O racks, ensuring ordered event reconstruction during system diagnostics. Firmware and hardware coupling is designed for compatibility within Quantum platform slot addressing and backplane timing constraints, including mixed-module rack configurations and synchronized multi-rack deployments. Frequently Asked Questions Q: Does the module support hot-swap insertion in an energized Quantum rack?A: Hot-swap capability depends on rack configuration. Electrical backplane design requires adherence to Quantum system insertion guidelines; improper insertion may disrupt bus synchronization and event logging integrity. Q: How is timestamp accuracy maintained across multiple racks?A: Accuracy is maintained through external synchronization input (IRIG-B or DCF77), which distributes a unified time reference to all installed modules, ensuring consistent event ordering across backplane segments. Q: What is the effect of backplane power interruption on stored events?A: The onboard event buffer retains timestamped entries during transient communication loss; however, sustained backplane power removal halts acquisition until system restart and resynchronization. Field Installation Guidelines The module must be installed in a designated Modicon Quantum backplane slot with system power removed prior to insertion or extraction. Shielded field wiring is required for all digital inputs, with shielding terminated at a single-point ground reference to reduce loop interference. Input wiring should be routed away from high-frequency switching conductors to minimize induced noise on optocoupler input stages. Synchronization signal lines (IRIG-B or DCF77) must use impedance-controlled cabling with verified termination. Backplane slot alignment must be confirmed mechanically to prevent connector pin stress during insertion.
$200.00 $100.00
-

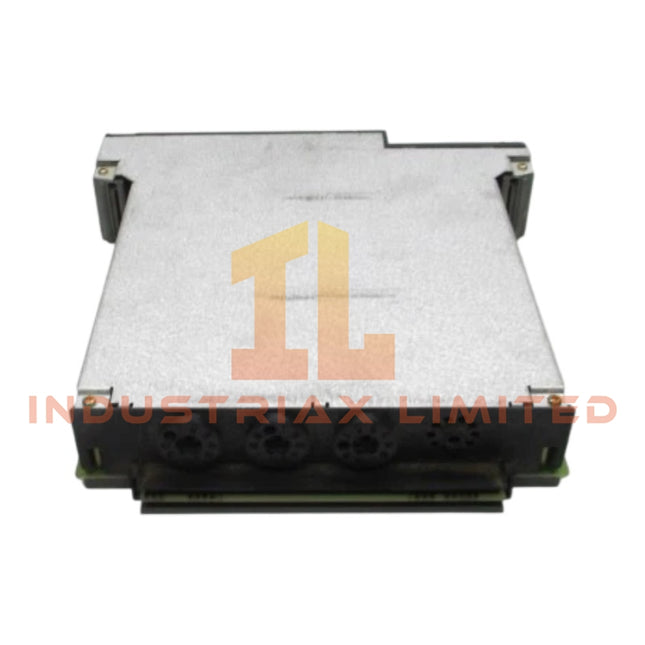

Schneider Electric Schneider Electric TSXP47425 Processor Module
Schneider Electric TSXP47425 Processor Module Configured for processing and scan-cycle execution in Modicon Premium backplane architecture, the Schneider Electric TSXP47425 (TSXP47425 Processor Module) provides direct physical/electrical execution within Modicon Premium PLC rack systems. The module performs centralized logic processing, I/O task scheduling, and communication handling through the rack backplane bus structure. Suffix Breakdown & Model Matrix TSXP47425 is a fixed ordering reference within the Modicon Premium processor family. No field-encoded suffix structure or functional sub-identifier segmentation is defined. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXP47425 Weight 1.285 kg (packaged) Dimensions 10 cm x 23 cm x 23.5 cm (packaged) OperatingTemp Not specified PowerConsumption 5 VDC, approx. 350 mA to 500 mA (backplane supply) Memory Capacity 128 KB internal RAM Expanded Memory PCMCIA expansion supported Max Digital I/O Up to 1024 points Max Analog I/O Up to 80 channels Application Tasks Master / Fast / Event-driven task execution Communication Ports TER port, AUX serial interface Slot Width Single-slot module Backplane Bus Communication and Deterministic Execution The TSXP47425 processor operates on a deterministic backplane bus structure where scan cycle execution is synchronized with internal rack timing. I/O refresh operations are executed through cyclic memory mapping rather than external network arbitration. Backplane communication velocity is maintained through fixed scan scheduling, ensuring consistent task execution timing across distributed rack modules. Firmware-level task separation (master, fast, event) allows deterministic prioritization of process logic versus communication servicing without external jitter dependency. Frequently Asked Questions Q: Does the TSXP47425 support hot swapping during operation?A: Hot swap capability depends on rack configuration, but processor removal under energized conditions is not supported. Power isolation is required prior to replacement. Q: Can memory be expanded beyond internal RAM?A: Yes. Expansion is supported via PCMCIA memory cards for application code and data storage extension. Q: How is I/O synchronization handled across the rack?A: I/O synchronization is executed through backplane cyclic refresh linked to PLC scan cycles, not through external communication networks. Field Installation Guidelines Install the module only into a compatible Modicon Premium rack slot with power removed. Ensure edge connector alignment before full insertion to avoid pin deformation. Maintain separation between communication wiring and high-power conductors to reduce electromagnetic coupling on serial interfaces. Verify battery presence prior to commissioning to prevent application memory loss during power interruption. Ensure rack grounding impedance meets standard industrial control cabinet grounding practices to stabilize backplane reference potential.
$200.00 $100.00
-

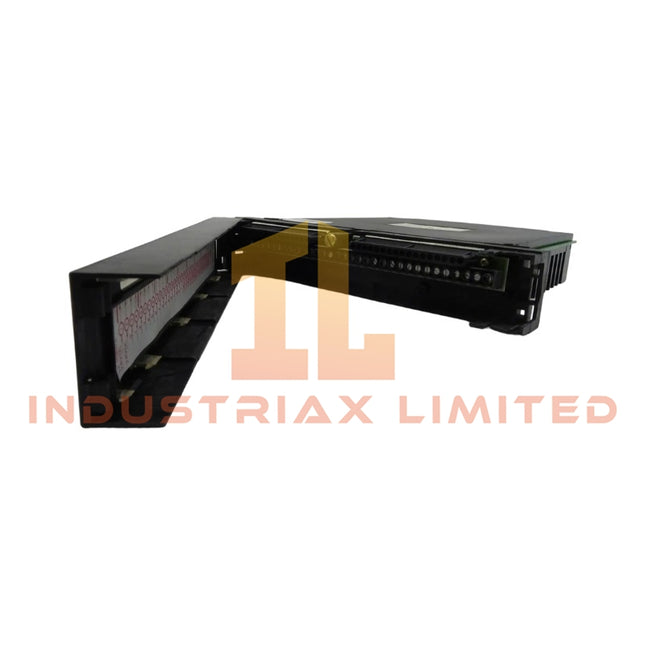

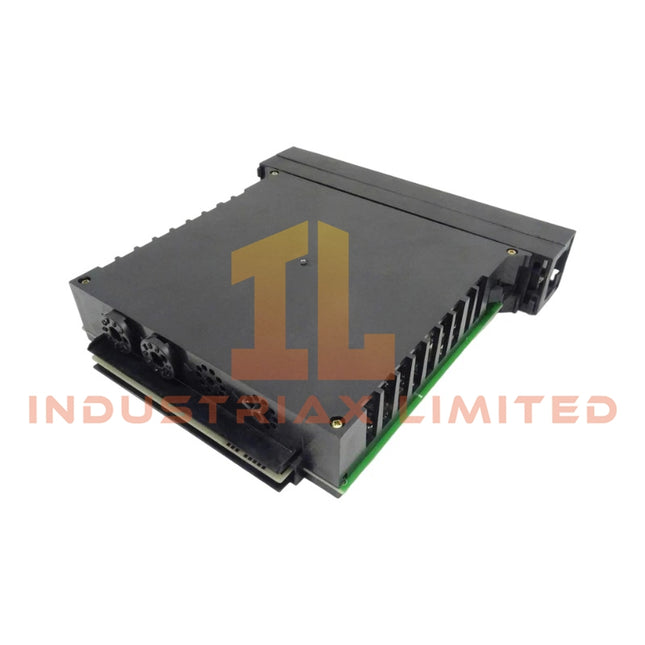

Schneider Electric DC Discrete Input Module | TSXDET3242 Schneider Electric
Schneider Electric TSX Series 7 - 32 I 24 V DC Discrete Input Module Configured for 24 V DC digital signal acquisition in TSX Series automation architectures, the Schneider Electric TSX Series 7 - 32 I 24 V DC (TSX Series 7 32 I 24 V DC discrete input module) provides direct electrical interface for binary field device state monitoring within PLC backplane-based control systems. Suffix Breakdown & Model Matrix The designation “TSX Series 7 - 32 I 24 V DC” indicates a TSX Series platform module with 32-channel discrete input capacity and 24 V DC nominal input compatibility. No further structured suffix decomposition is defined in the provided data set; additional internal ordering code segmentation is not specified. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSX Series 7 - 32 I 24 V DC Weight 500 g (packing unit) Dimensions 5.0 cm x 19.0 cm x 19.5 cm Input Type Discrete digital input Input Voltage 24 V DC Channel Capacity 32 I (32 points) System Interface TSX backplane connection Backplane Bus Communication and I/O Density Scaling The TSX Series 7 discrete input architecture operates through PLC backplane bus coupling, where channel state acquisition is synchronized via deterministic scan cycles. In TSX-class systems, I/O density scaling is defined by rack slot allocation and addressing resolution across the internal communication bus. Backplane transfer timing is dependent on CPU scan rate and module addressing map consistency, with no external field protocol conversion required for direct digital input registration. Frequently Asked Questions Q: Can this module be hot-swapped under live 24 V DC field conditions?A: Hot-swap capability is dependent on TSX rack configuration and system power isolation design. In typical configurations, removal under load is not permitted unless rack supports controlled de-energized slot replacement. Q: Does the module impose measurable backplane load during simultaneous 32-channel activation?A: Backplane current draw is managed at rack level; channel activation does not directly increase backplane load per input state, but aggregate module consumption is fixed per design. Q: Is firmware update required for input state processing accuracy?A: Discrete input modules generally operate without field firmware updates; compatibility is determined by CPU and rack firmware baseline. Field Installation Guidelines Ensure 24 V DC input wiring conforms to standard industrial separation between field and logic circuits. Maintain shield continuity for input cable bundles where electromagnetic interference is present. Verify correct TSX rack slot insertion alignment prior to energization. Do not route input wiring parallel to high-frequency drive cables without physical separation. Confirm all field devices share common reference potential when using non-isolated input groups.
$200.00 $100.00
-

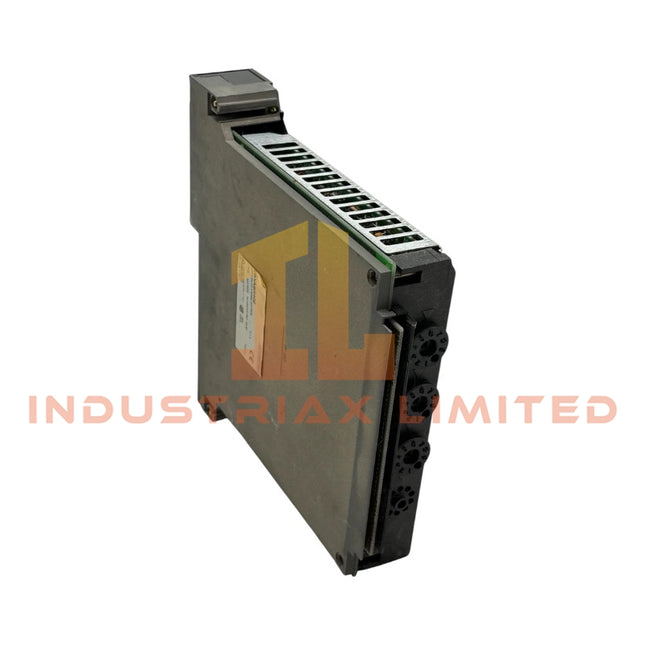

Schneider Electric Safety AS-Interface Monitor Module TSXASR402 Schneider Electric
Schneider Electric TSXASR402 Safety AS-Interface Monitor Module Configured for safety input monitoring and relay de-energization control in AS-Interface Safety at Work network,the Schneider Electric TSXASR402 (TSXASR402 Safety AS-Interface Monitor Module) provides direct physical/electrical execution. HardwareSpecifications Parameter Specification ModelBrand Schneider Electric TSXASR402 Origin France (Schneider Electric product line) Weight Not specified (refer manufacturer documentation) Dimensions DIN rail mounted module, exact dimensions not specified OperatingTemp 0 degC to +55 degC PowerConsumption Max 150 mA at 24 VDC SupplyVoltage 24 VDC (AS-i network or external safety supply) SafetyCategory Category 4 (EN 954-1), SIL 3 (IEC 61508), PL e (ISO 13849-1) ResponseTime <= 40 ms safety output de-energization Outputs 2 independent safety relay outputs (NO contacts) AS-i Interface AS-Interface 2.1 or higher compatible Industrial Control Backplane and Deterministic Network Behavior The TSXASR402 integrates into Schneider Electric PLC and safety architectures where AS-Interface segmentation is mapped through deterministic backplane communication layers. In TSX Micro and Premium ecosystems, module-level safety state transitions are synchronized with controller scan cycles and distributed I/O refresh timing. Firmware-level compatibility constraints govern safe-state propagation latency when interfaced with higher-level PLC racks, particularly in mixed AS-i and fieldbus topologies. Backplane bus timing integrity and IO density scaling behavior are dependent on system configuration and safety task prioritization within the controller runtime environment. Frequently Asked Questions Q: Can the TSXASR402 maintain safety state during AS-i communication loss?A: Yes. The module forces relay outputs to de-energized state upon detected AS-i bus interruption or invalid safety telegram conditions. Q: What is the switching architecture of the safety outputs?A: It uses 2 independent normally open relay channels designed for redundant safety load interruption. Q: Is firmware update or parameter download supported via AS-i network?A: Configuration is performed through AS-i safety configuration tools; runtime firmware update capability depends on system integration platform and is not natively field hot-swappable. FieldInstallationGuidelines The module shall be mounted on a 35 mm DIN rail with mechanical locking engaged on both ends. AS-i flat cable polarity must be strictly maintained according to yellow AS-i trunk wiring conventions. Shielding continuity should be preserved across the AS-i segment with low impedance grounding at a single reference point to avoid ground loop currents. Safety relay outputs must be wired using force-guided or certified safety contactors when driving external loads. Separation between AS-i communication wiring and power conductors is required to minimize induced noise coupling. All commissioning must verify that safety input devices correctly transition the module into defined safe state within specified response time <= 40 ms.
$200.00 $100.00
-

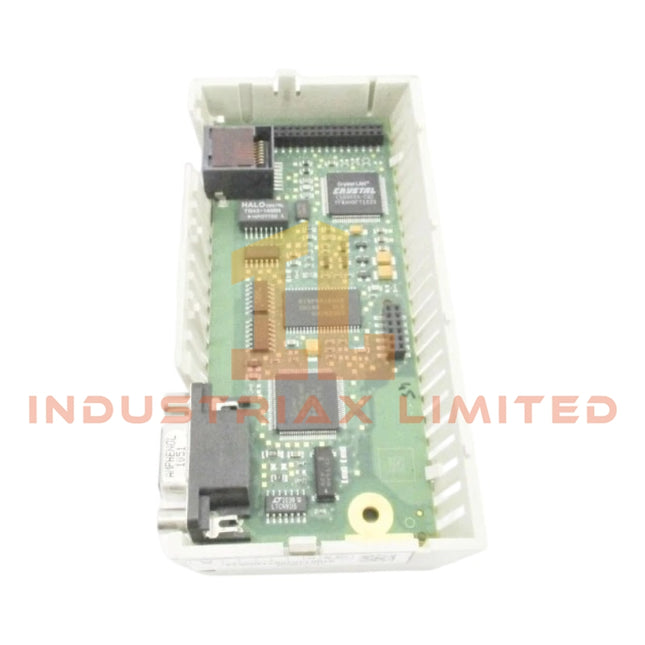

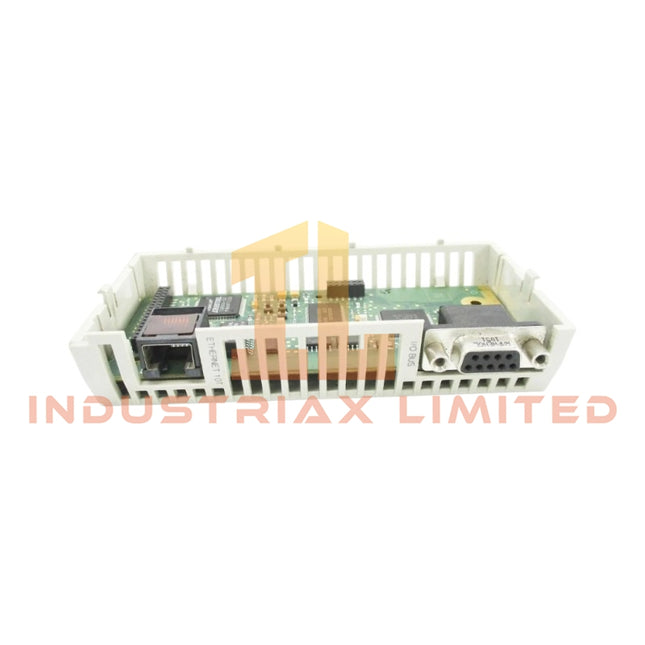

Schneider Electric 171CCC96020 M1/M1E Processor Adaptor Schneider Electric
Schneider Electric 171CCC96020 M1/M1E Processor Adaptor Configured for Ethernet-based I/O exchange and backplane data handling in Modicon Momentum automation platform, the Schneider Electric 171CCC96020 (M1/M1E processor adaptor) provides direct physical/electrical execution of processor-to-I/O bus communication. The module operates with an x86-based processing core at 50 MHz and supports Modbus TCP messaging over a single Ethernet interface. Backplane execution follows deterministic I/O scanning behavior within Momentum rack architecture, with firmware flash compatibility aligned to legacy ProWORX and Concept toolchains. Suffix Breakdown & Model Matrix The designation 171CCC96020 is a complete order code for the M1/M1E processor adaptor. No officially published sub-field segmentation or functional suffix decomposition is provided in the reference dataset. Therefore, no further structural breakdown is applied. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 171CCC96020 Weight 0.042 kg PowerConsumption 5.0 VDC (supplied via Momentum I/O base) Processor x86-based CPU (Intel/AMD class), 50 MHz Ethernet Interface 1 port, Modbus TCP capable I/O Bus 1 Momentum I/O backplane bus Program Memory 18 kB LL984 Data Memory 24 kB RAM / Flash 544 kB RAM / 512 kB Flash I/O Capacity 8192 I / 8192 O (bits), 26048 I/O registers Schneider Electric PLC Backplane Communication Behavior The module integrates into the Momentum rack backplane where cyclic scan execution is synchronized through deterministic I/O scheduling. Ethernet communication supports Modbus TCP messaging and I/O scanning services. Firmware behavior is compatible with ProWORX NxT, ProWORX 32, Modsoft (>= V2.5), and Concept V2.6 environments. The processor adaptor maintains I/O density scaling across distributed Momentum drops while preserving consistent register mapping across 16-bit word architecture. Firmware flash operations follow standard Momentum loader sequencing with backplane arbitration control. Frequently Asked Questions Q: Can the module be hot-replaced during system operation?A: The adaptor is not specified as hot-swappable. Removal typically requires rack power isolation to prevent backplane bus corruption. Q: What is the limitation of Ethernet communication on this device?A: Only one Ethernet port is available, supporting Modbus TCP messaging and I/O scanning; no redundant Ethernet interface is present. Q: How is I/O data mapped internally?A: I/O is mapped through register-based addressing up to 26048 I/O words, synchronized via Momentum backplane scan cycles. Field Installation Guidelines Install the processor adaptor only in a compatible Momentum rack with verified 5.0 VDC backplane supply integrity. Ensure all I/O modules are fully seated before energizing the system to prevent bus initialization faults. Maintain proper shielding and grounding of Ethernet cabling to reduce signal interference on Modbus TCP communication. Backplane connectors must be inspected for alignment prior to insertion to avoid pin damage. Avoid live insertion unless system architecture explicitly supports controlled rack hot swap procedures.
$200.00 $100.00
-

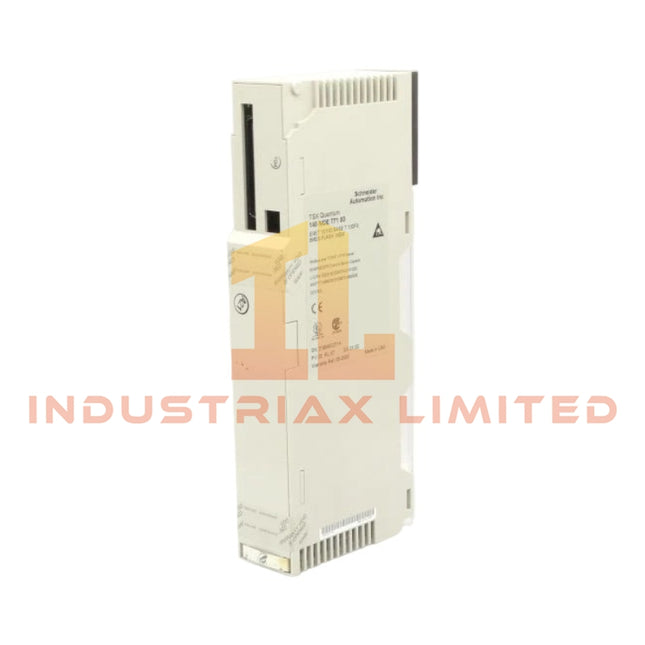

Schneider Electric 140NOE77100 Ethernet Network TCP/IP Module Schneider Electric
Schneider Electric 140NOE77100 Ethernet network TCP/IP module The Schneider Electric 140NOE77100 (140NOE77100) Ethernet network TCP/IP module serves as the primary Modicon Quantum communication interface utilized to execute Ethernet-based Modbus TCP/IP data exchange across Quantum automation rack backplanes. Configured for deterministic network communication within Modicon Quantum architectures, the Schneider Electric 140NOE77100 enables direct Ethernet physical-layer connectivity and rack-level data routing execution. Suffix Breakdown & Model Matrix No structured suffix segmentation is defined in the provided technical data. The full ordering code 140NOE77100 is treated as a single integrated hardware identifier without modular suffix decomposition. Hardware Specifications Parameter Specification Model 140NOE77100 Brand Schneider Electric PowerConsumption Supplied via rack backplane power supply Product Type Ethernet TCP/IP Communication Module Protocol Support Modbus TCP/IP Communication Services I/O scanning, messaging, diagnostics web pages Web Server Class Class B20 Ethernet Ports RJ45 10BASE-T/100BASE-TX, MT-RJ 100BASE-FX fiber Transmission Rate 10 / 100 Mbit/s Redundancy Support Hot standby redundant architecture Diagnostic Functions Predefined web-based diagnostics, rack viewer Configuration Interface Data editor via PC terminal Deterministic Backplane & Ethernet Network Execution Characteristics Configured for industrial PLC backplane data arbitration, the module integrates deterministic Ethernet frame handling aligned with Modicon Quantum rack scheduling. Ethernet traffic is processed through dual media interface arbitration (copper RJ45 and fiber MT-RJ), enabling segmented network paths for control and diagnostic channels. Firmware-level communication handling supports Modbus TCP/IP stack execution with cyclic I/O scanning behavior synchronized to rack backplane timing. Firmware flash compatibility is aligned with Quantum platform revision constraints, ensuring consistent protocol handling across mixed-rack deployments. Frequently Asked Questions (FAQ) Q: Can the module operate in a hot standby redundant Quantum rack configuration?A: Yes. The module supports hot standby redundancy where primary and standby communication paths maintain synchronized Ethernet session state via rack backplane coordination. Q: What communication protocols are natively executed?A: The module executes Modbus TCP/IP messaging and I/O scanning services over Ethernet physical interfaces. Q: Does the module support dual media Ethernet connectivity simultaneously?A: It provides both RJ45 twisted pair and MT-RJ fiber interfaces; active path selection depends on network configuration and physical connection topology. Field Installation Guidelines Install the module into a Modicon Quantum compatible rack slot with verified backplane seating alignment. Ensure rack power is isolated prior to insertion to prevent backplane transient current stress. For RJ45 cabling, maintain standard Ethernet Category 5e or higher routing practices with controlled bend radius and separation from high-voltage conductors. For MT-RJ fiber, ensure connector cleanliness and avoid micro-bending stress exceeding standard industrial fiber installation constraints. Shield grounding must follow cabinet-level single-point grounding strategy to minimize Ethernet noise coupling across communication lines.
$200.00 $100.00
-

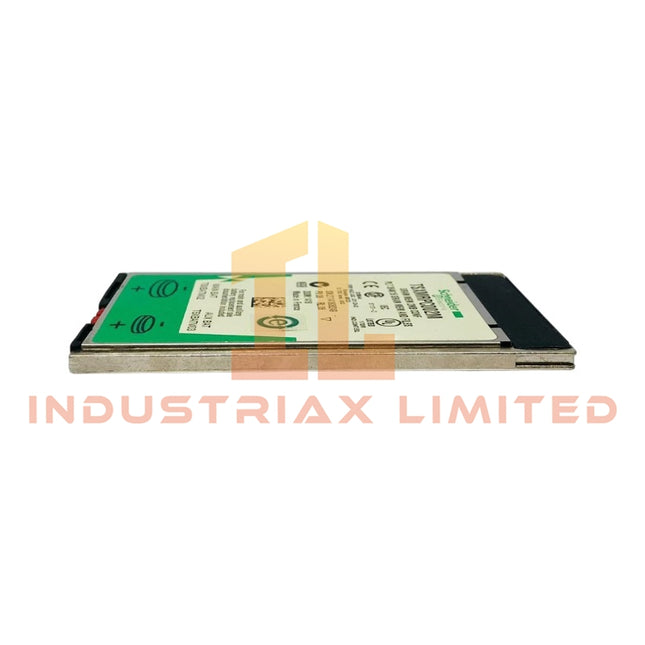

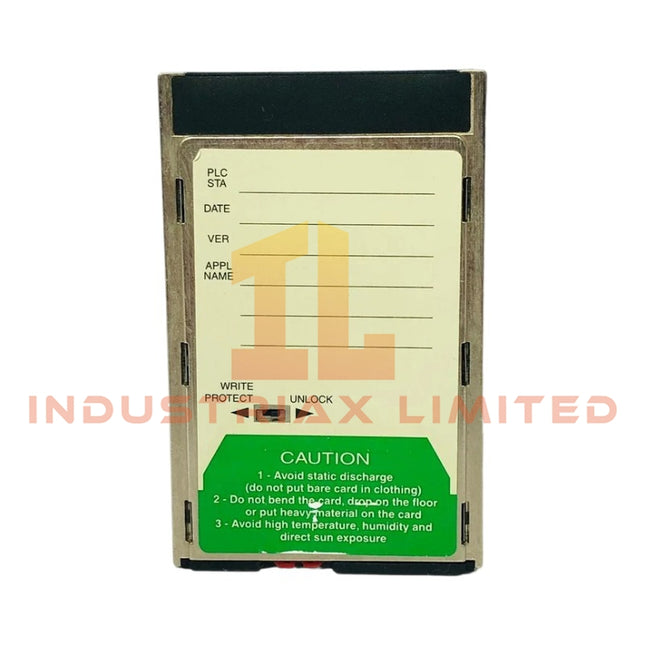

Schneider Electric Schneider Electric Modicon Quantum Memory Extension TSXMRPC002M
Schneider Electric TSX SRAM Memory Extension Module Configured for application and file memory expansion in Modicon Premium processor environments, the Schneider Electric TSX SRAM Memory Extension Module (TSX SRAM Memory Extension Module SRAM accessory module) provides direct physical memory extension execution within TSX570 to TSX576 controller platforms. Suffix Breakdown & Model Matrix No explicit suffix decomposition is defined in the provided documentation. The module is referenced as a configurable SRAM application/file memory extension accessory for Modicon Premium processors. Hardware Specifications Parameter Specification Model TSX SRAM Memory Extension Module Brand Schneider Electric Weight 0.076 kg (0.17 lb US) Memory Type SRAM Application Memory Capacity 192 kB to 2048 kB Data Storage Capacity Up to 1856 kB (as specified range data) Slot Position Slot 0 Compatible Processors TSX570 to TSX576, TSX57C, TSXPCI572/3 Backplane Memory Interface and Modicon Premium Architecture Behavior The TSX SRAM memory extension operates as a slot-mounted memory resource integrated into the Modicon Premium backplane architecture. Memory mapping is executed through deterministic backplane communication cycles, ensuring consistent addressing between processor and SRAM extension block. Backplane bus arbitration is handled at controller level, where SRAM access latency is governed by processor cycle synchronization and firmware memory allocation tables. Firmware compatibility constraints apply depending on TSX processor generation, particularly in configuration download and runtime memory refresh sequences across TSX57C series CPUs. Frequently Asked Questions Q: Does the module support hot-swap insertion in TSX Premium racks?A: No hot-swap operation is defined. Memory module insertion must be performed under controlled power-down conditions to prevent SRAM corruption during address mapping initialization. Q: How is memory mapped between application and file storage regions?A: Memory allocation is managed by the TSX processor firmware, which partitions SRAM into application and file storage regions during initialization based on configuration parameters. Q: Is firmware synchronization required after installation?A: Yes. The processor must reinitialize memory mapping tables after installation to ensure correct backplane recognition and SRAM address alignment. Field Installation Guidelines Ensure controller power is fully isolated before inserting the SRAM module into Slot 0 of the TSX rack. Verify that the module is fully seated in the backplane connector to maintain stable address bus continuity. Avoid electrostatic discharge during handling by using grounded ESD protection procedures. Do not force insertion if mechanical resistance is detected, as backplane pin misalignment may result in memory recognition failure. After installation, perform a full controller power cycle to allow firmware to re-map SRAM allocation tables.
$200.00 $100.00
-

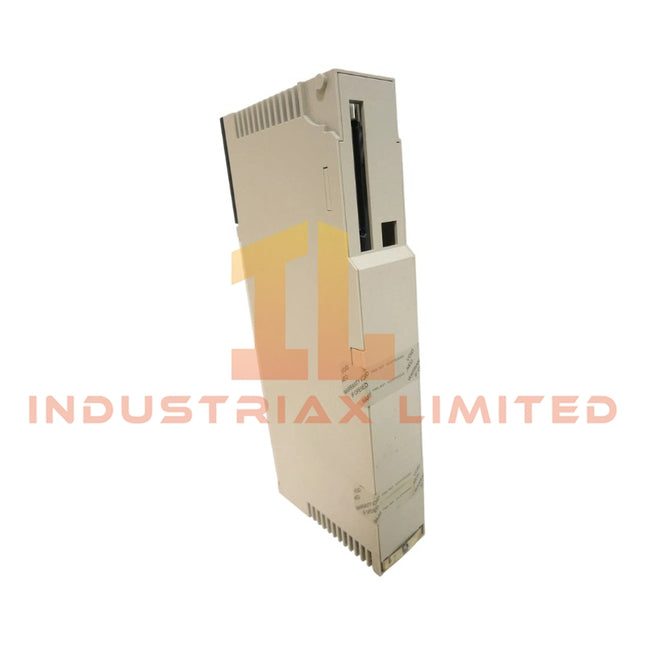

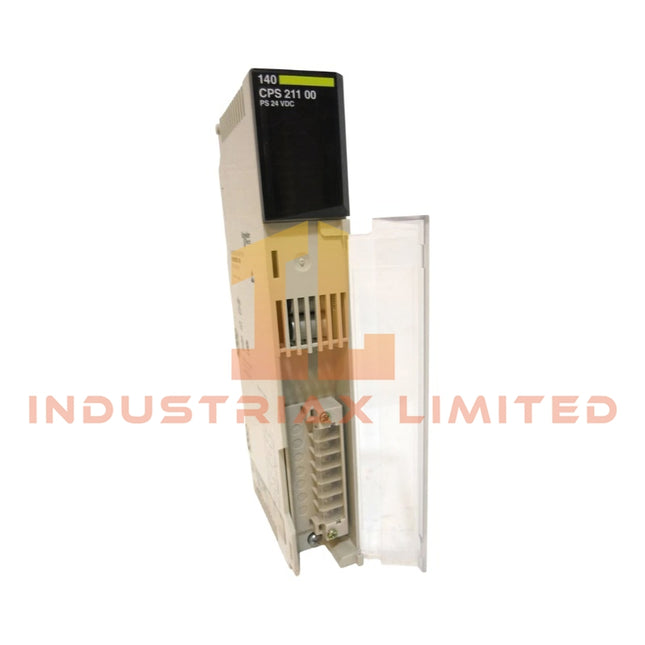

Schneider Electric Schneider Electric Modicon Quantum Power Supply Module 140CPS21100
Schneider Electric 140CPS21100 Power Supply Module Configured for DC power conversion and backplane distribution in Modicon Quantum rack-based control systems, the Schneider Electric 140CPS21100 (140CPS21100 power supply module) provides direct electrical execution for 24 VDC to 5.1 VDC system rail conversion within Modicon Quantum automation platforms. SuffixBreakdown&ModelMatrix Model: 140CPS21100 No additional suffix segments or option codes are defined in the provided specification set. The device is treated as a single fixed-order power supply module variant. HardwareSpecifications Parameter Specification ModelBrand Schneider Electric 140CPS21100 Weight 0.65 kg Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption 2 + (3 x Iout) W (dissipation model) Input Voltage 24 VDC (20 to 30 VDC) Input Current 1600 mA Inrush Current 30 A Output Voltage 5.1 VDC Output Current 0.3 to 3 A Power Interruption Immunity 1 ms @ 20 VDC, 20 ms @ 25 VDC Protection Internal overvoltage and overload protection Signalling 1 x green LED (PWR OK) Backplane Power Distribution and PLC Rail Interface Behavior Within the Modicon Quantum architecture, the 140CPS21100 module participates in rack-level backplane energization where regulated 5.1 VDC is injected into the system bus for CPU and I/O module consumption. The backplane communication layer relies on deterministic electrical rail stability, where transient suppression and inrush limiting (30 A peak) govern module insertion dynamics. Power interruption tolerance (1 ms to 20 ms depending on input level) defines reset boundary conditions for downstream logic modules, ensuring controlled restart sequencing across the rack. FrequentlyAskedQuestions Q: Can the module be hot-inserted into an energized Quantum rack?A: The module includes inrush current limiting (30 A peak), but hot-insertion behavior depends on rack design and backplane tolerance. Electrical arcing and transient loading must be evaluated at system level. Q: What is the impact of load variation on output stability?A: Output current range is 0.3 A to 3 A. The internal regulation loop maintains 5.1 VDC, while power dissipation increases according to 2 + (3 x Iout) W. Q: How does input power interruption affect system operation?A: The module supports 1 ms hold-up at 20 VDC and 20 ms at 25 VDC, defining the minimum immunity window before backplane voltage collapse may occur. FieldInstallationGuidelines Install only in compatible Modicon Quantum rack backplane assemblies. Verify 24 VDC supply is within 20 to 30 VDC operating window prior to energization. Maintain correct polarity on input terminals to avoid internal protection triggering. Ensure sufficient upstream fuse protection (2.5 A slow-blow recommended). Provide proper chassis grounding to reduce electromagnetic interference on backplane rails. Allow adequate airflow within cabinet to manage dissipation proportional to load current.
$200.00 $100.00
-

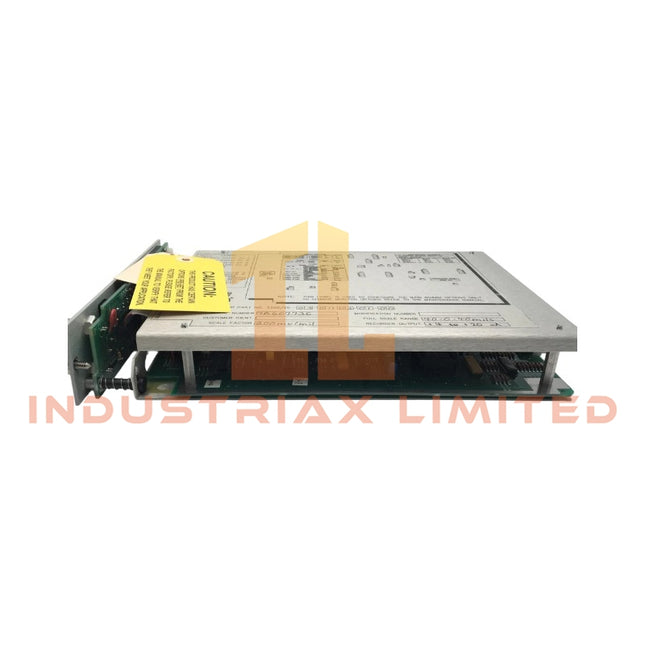

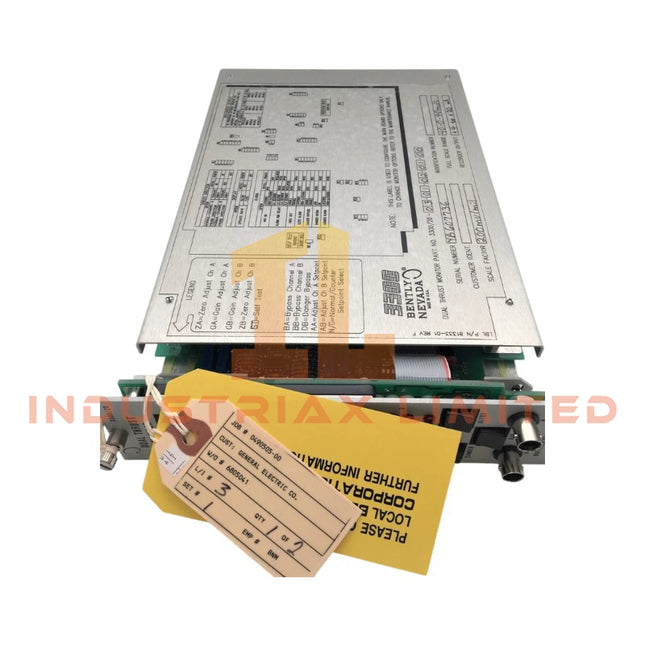

Bently Nevada Bently Nevada 3300/20-12-01-01-00-00 Dual Thrust Position Monitor Module
Bently Nevada 3300/20 Dual Thrust Position Monitor Module The Bently Nevada 3300/20-12-01-01-00-00 also cataloged as the 3300/20 Dual Thrust Position Monitor module, operates as a dedicated hardware component for axial shaft displacement measurement within the Bently Nevada 3300 Series Machinery Monitoring System. It processes dual independent proximity probe inputs to execute continuous thrust position tracking relative to configured bearing clearance limits. Hardware Specifications Parameter Specification ModelBrand Bently Nevada 3300/20-12-01-01-00-00 Origin USA Weight 1.0 to 1.4 kg Dimensions Not specified (3300 Series full-height rack module form factor) OperatingTemp 0 degC to +65 degC PowerConsumption 7.7 W nominal Input Channels 2 independent proximity probe channels Input Signal 3300 / 7200 Proximitor compatible Frequency Response DC to 6.5 kHz (plus 0, minus 3 dB) Accuracy plus or minus 1 percent of full scale Output Types 0 to -10 VDC, +1 to +5 VDC, or 4 to 20 mA Eddy-Current Probe Scaling and Gap Voltage Validation The module processes eddy-current probe signals through calibrated Proximitor interfaces, converting gap-dependent voltage into axial displacement values. Nominal scaling supports 200 mV/mil or approximately 7.87 V/mm depending on configured transducer type. Gap voltage monitoring is continuously evaluated against expected operating windows, with front-panel indication used to confirm probe-to-target clearance integrity. The system supports validation against negative voltage excursion limits typically associated with thrust position reference baselines (including -10 VDC domain scaling in full-scale configurations). Signal integrity is maintained through cross-channel comparison logic, reducing susceptibility to probe degradation, cable attenuation, or electromagnetic coupling effects between adjacent monitoring paths. Frequently Asked Questions Q: Can the 3300/20 operate in hot-swap condition within a live rack system?A: The module is designed for insertion in a powered 3300 Series rack, but hot-swap procedures require channel isolation and adherence to system rack maintenance sequencing to avoid transient alarm states. Q: How does the module handle dual-channel disagreement in axial position readings?A: The system supports configurable AND/OR voting logic. In thrust applications, 2-out-of-2 AND logic is typically used to prevent single-channel drift from triggering false trip conditions. Q: What is the effect of backplane loading on measurement accuracy?A: Backplane power consumption is fixed at nominal 7.7 W. Electrical loading does not directly affect analog scaling but unstable rack power conditions may introduce signal reference drift across channels. Field Installation Guidelines Shielded coaxial connections must be used between proximity probes and Proximitor interfaces, with shield termination grounded at a single point to avoid ground loop interference. Probe gap calibration should be verified prior to commissioning using stable mechanical reference targets. Module insertion should follow rack power isolation procedures recommended for the 3300 Series backplane architecture. Channel wiring separation is required to maintain cross-talk suppression between dual measurement paths. Proximity probe tip alignment must remain within manufacturer-specified linear operating range to ensure valid eddy-current response. Mechanical mounting stability of probe brackets directly impacts long-term axial position stability and noise floor performance.
$200.00 $100.00
-

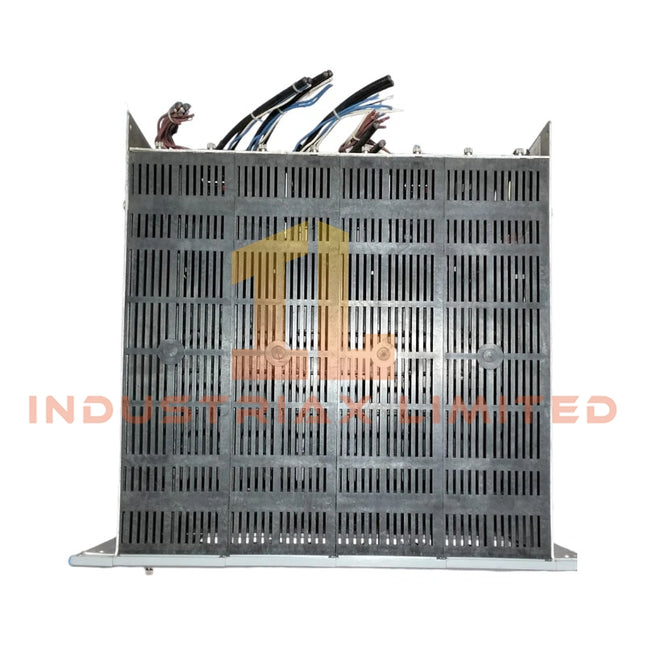

Bently Nevada 3300 System Rack Bently Nevada 3300/05-23-00-00 3300
Bently Nevada 3300/05-23-00-00 3300 System Rack Configured for physical slot hosting, backplane power distribution, and module interconnection within the Bently Nevada 3300 machinery protection platform, the Bently Nevada 3300/05-23-00-00 (3300/05 System Rack) provides direct mechanical and electrical execution for 3300 series monitoring modules across the 3300 Series System Rack architecture. Suffix Breakdown & Model Matrix 3300/05: Base System Rack platform -23: 19 inch rack mount configuration with 14 module slots and internal termination -00: Standard panel wiring implementation -00: Standard agency/approval configuration Hardware Specifications Parameter Specification Model Brand Bently Nevada 3300/05-23-00-00 Origin USA (Bently Nevada platform manufacturing) Weight approx. 8.2 kg (rack only, without modules) Dimensions 19 inch rack format, approx. 7U height (exact enclosure dependent on cabinet integration) Operating Temp 0 degC to +65 degC Power Consumption Dependent on installed modules and 3300 system power supply loading Backplane Voltage +5 VDC, +15 VDC, -15 VDC, -24 VDC distributed via system power module Slot Capacity 14 monitoring module slots plus system/power positions Termination Type Internal termination via rear backplane connection Eddy Current Probe Scaling and Signal Conditioning Backplane Behavior The 3300/05 rack backplane supports direct integration of eddy-current proximity probe signal chains used in Bently Nevada 3300 vibration channels. Probe input conditioning modules rely on stable backplane reference rails to maintain gap voltage validation targets (typically centered around negative DC bias regions such as -10 VDC operating windows at probe interface conditioning stages). Cross-channel interference is mitigated through physical slot isolation and backplane trace separation, reducing crosstalk in multi-channel rotor vibration measurement configurations. Signal scaling consistency is maintained across installed proximity probe channels to preserve rotor dynamics trending accuracy and phase coherence between adjacent monitoring cards. Frequently Asked Questions Q: Can 3300/05-23-00-00 support hot-swap module replacement?A: Module insertion is mechanically supported at rack level, but electrical hot-swap behavior depends on installed power supply and system configuration. Backplane voltage stability must be maintained during module exchange. Q: What is the backplane current limitation per slot?A: Current loading is distributed via the system power supply rails. Each slot draw is defined by installed module consumption and overall rack power budget rather than fixed per-slot current limitation. Q: Does internal termination affect signal integrity?A: Internal termination reduces external wiring length, minimizing noise pickup and maintaining impedance consistency for vibration and position transducer channels. Field Installation Guidelines Install rack into a grounded 19 inch equipment cabinet structure Maintain continuous protective earth bonding between rack chassis and cabinet frame Route proximity probe and transducer wiring using shielded twisted pair conductors Terminate cable shields at designated single-point ground reference to avoid ground loop currents Observe minimum bend radius for signal wiring entering rear termination area Maintain separation between low-level sensor wiring and power conductors within cabinet routing paths Verify backplane connector seating alignment before applying system power
$200.00 $100.00
-

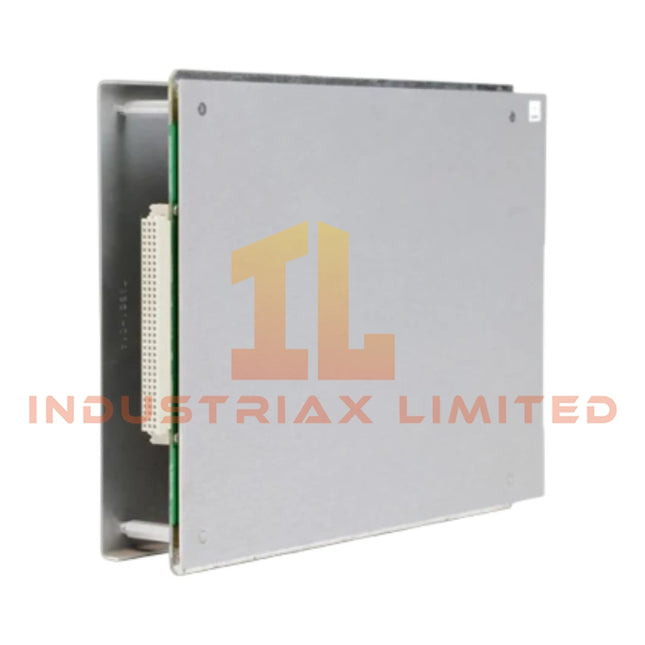

Bently Nevada Differential Expansion Monitor Module Bently Nevada 3300/45-01-02-03-00
Bently Nevada 3300/45-01-02-03-00 Differential Expansion Monitor Module Configured for differential expansion measurement in the Bently Nevada 3300 monitoring architecture, the Bently Nevada 3300/45-01-02-03-00 (3300/45 Differential Expansion Monitor Module) provides direct physical/electrical execution for dual-channel rotor-to-stator displacement conversion within proximity probe based measurement loops. Suffix Breakdown & Model Matrix 3300/45: Dual Differential Expansion Monitor Module for 3300 rack system -01: Dual complementary input configuration (Channel A and B paired measurement logic) -02: Full scale range configuration (50-0-50 mm class scaling) -03: CSA/NRTL/C hazardous area approval option (Class 1 Div 2 rating) -00: No internal intrinsic safety barrier configuration Hardware Specifications Parameter Specification ModelBrand Bently Nevada 3300/45-01-02-03-00 Origin USA Weight 1.02 kg Dimensions Single slot 3300 rack module width OperatingTemp -30 degC to +65 degC PowerConsumption Powered via 3300 rack backplane (low power instrumentation load) Measurement Function Dual differential expansion monitoring Input Type Dual proximity transducer systems (eddy current based) Outputs 4-20 mA, 0 to -10 VDC, 1 to 5 VDC selectable Frequency Response DC to 0.5 Hz Alarm Outputs Alert and Danger setpoints with configurable delay Eddy Current Probe Scaling And Gap Voltage Validation The module interfaces directly with eddy current proximity probe systems operating under calibrated gap voltage conversion rules within the Bently Nevada 3300 platform. Signal conditioning maintains linear scaling across full differential expansion travel, while gap voltage validation is referenced against -10 VDC span targets to ensure consistency across dual probe geometry inputs. Cross-channel interference suppression is applied at the analog conditioning stage to maintain rotor dynamics integrity under thermal transient conditions. Frequently Asked Questions Q: Can the module operate with mixed proximity probe sizes within Channel A and Channel B?A: Operation requires matched transducer system scaling. Mixed probe geometries introduce non-linear conversion errors in differential expansion computation. Q: What is the backplane dependency for signal conversion?A: The module relies on the 3300 rack backplane for power distribution and internal signal routing. No standalone operation is supported. Q: Does firmware modification affect calibration scaling?A: Calibration scaling is fixed at hardware configuration level. No field firmware recalibration layer is implemented. Field Installation Guidelines Shielded coaxial cables from proximity probes shall be routed with continuous grounding at the rack entry point. Cable separation from high voltage conductors must be maintained to prevent induced noise coupling. Backplane slot seating must be fully engaged to ensure stable analog reference distribution. Signal output wiring for 4-20 mA loops shall maintain single-point ground reference to avoid ground loop interference across monitoring channels.
$200.00 $100.00
-

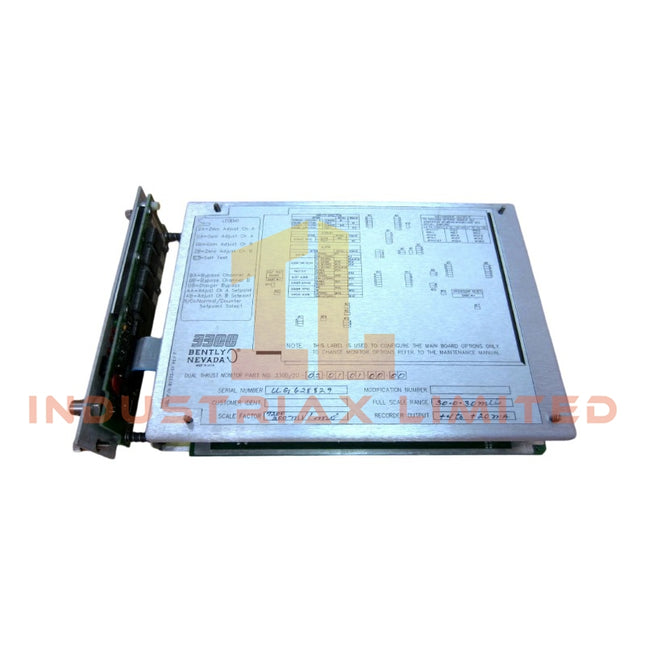

Bently Nevada Bently Nevada 3300/20-13-03-01-00-00 Dual Vibration Monitor Module
Bently Nevada 3300/20-13-03-01-00-00 Dual Vibration Monitor Module Configured for dual-channel radial vibration and axial position monitoring in Bently Nevada 3300 Machinery Protection System, the Bently Nevada 3300/20-13-03-01-00-00 (3300/20 Dual Vibration Monitor module) provides direct physical/electrical execution for two independent proximity transducer input channels used in shaft motion measurement. Suffix Breakdown & Model Matrix The configuration string -13-03-01-00-00 represents factory-defined options applied to the base 3300/20 monitor platform. No further decoding is assumed beyond manufacturer-defined ordering structure: Full Model: 3300/20-13-03-01-00-00 Base Module: 3300/20 Dual Vibration Monitor Option Fields: 13 / 03 / 01 / 00 / 00 (factory configuration set) Hardware Specifications Parameter Specification ModelBrand Bently Nevada 3300/20-13-03-01-00-00 OperatingTemp 0 degC to 65 degC (typical 3300 platform range) PowerConsumption Not specified Channels 2 independent vibration/position inputs Input Type Proximitor-based eddy current transducer signals Output Interface Analog proportional outputs + buffered signal access Alarm Outputs Relay-based Alert and Danger outputs Bently Nevada Eddy-Current Scaling and Signal Integrity Behavior The module processes eddy-current probe signals with scaling referenced to calibrated gap voltage behavior derived from proximitor conditioning circuits. Signal validation includes proportional conversion of probe gap variations into DC voltage levels (commonly referenced to negative voltage swing behavior such as -10 VDC full-scale mapping in related systems). Cross-channel coupling suppression is implemented through isolated signal paths to prevent measurement contamination between axes. The signal chain is designed to maintain stability under rotor dynamic variation, where phase shift and amplitude distortion must remain within defined monitoring tolerance limits. Frequently Asked Questions Q: Does the module support hot-swap replacement in energized backplanes?A: The 3300 series architecture does not guarantee hot-swap operation. Removal or insertion typically requires controlled shutdown to avoid transient signal disturbance on transducer loops. Q: What is the relationship between input scaling and probe gap voltage?A: Input scaling is directly derived from eddy-current probe linear range calibration. The proximitor output is mapped to a conditioned DC voltage proportional to shaft displacement. Q: Are both channels electrically isolated?A: Channels are designed with internal signal separation to reduce cross-talk; however, complete galvanic isolation is not a default feature of the 3300/20 base design. Field Installation Guidelines Ensure backplane connector seating is fully engaged to maintain stable channel referencing. Maintain proper coaxial shielding continuity from proximity probe to monitor input terminals. Route transducer cables separately from high-noise power conductors to minimize induced signal distortion. Verify correct probe-to-proximitor pairing before energizing the system. Avoid bending radius violations on extension cables to prevent impedance variation. Confirm chassis grounding integrity to maintain measurement reference stability.
$200.00 $100.00
-

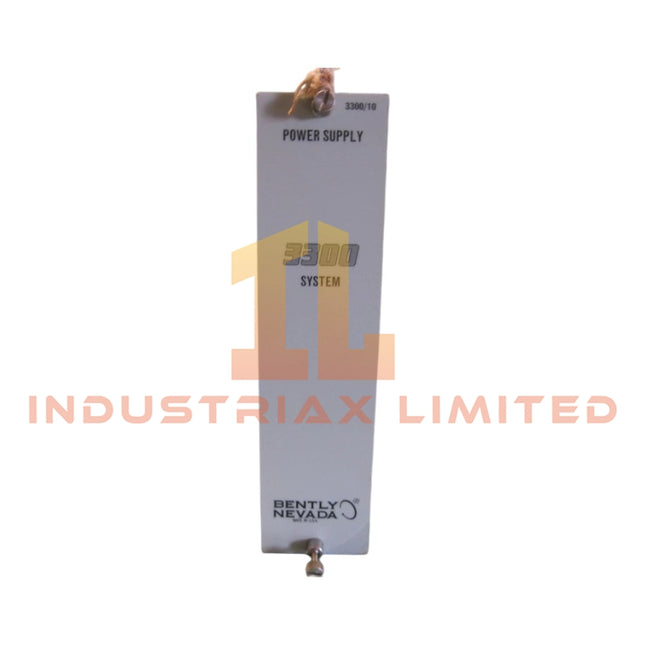

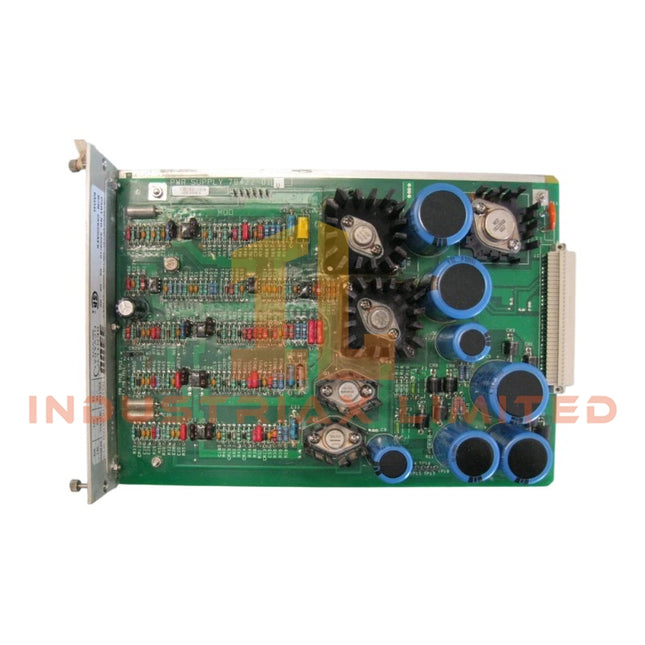

Bently Nevada Bently Nevada 3300/10-02-02-00 Power Supply Module
Bently Nevada 3300/10-02-02-00 Power Supply Module The Bently Nevada 3300/10-02-02-00, also cataloged as the 3300/10 Power Supply Module, serves as the primary 3300 rack power conversion unit utilized to execute regulated DC voltage generation and backplane energy distribution across Bently Nevada 3300 monitoring platforms. Suffix Breakdown & Model Matrix Option Code Function Description 3300/10 Module type Power Supply Module -02 Input voltage option 115 Vac, 50/60 Hz -02 Output regulation set Standard DC rails configuration -00 Approval option No agency certification option Hardware Specifications Parameter Specification ModelBrand Bently Nevada 3300/10-02-02-00 Dimensions Rack slot form factor (Slot 1 only) OperatingTemp 0 degC to +65 degC PowerConsumption Up to 150 W (system dependent) Input Voltage 95 to 130 Vac nominal 115 Vac Input Frequency 47 to 63 Hz Output Rails +5 Vdc, +15 Vdc, -15 Vdc, -24 Vdc Slot Position Slot 1 (far left rack position) Eddy-Current Probe Power Regulation and Voltage Rail Stabilization The 3300/10 module maintains regulated DC distribution for proximity probe excitation circuits operating under eddy-current displacement measurement principles. The -24 Vdc rail supports probe driver excitation paths, while internal regulation ensures stable gap voltage reference conditions typically aligned with -10 Vdc displacement scaling targets. Output rails are buffered against transient load changes induced by multi-channel vibration modules, preserving measurement integrity under dynamic rotor speed variation and maintaining stable analog front-end biasing for signal conditioning circuits. Frequently Asked Questions Q: Can the 3300/10 module be inserted or removed under power?A: The module is not designed for unrestricted hot-swap operation. Power isolation of Slot 1 is required prior to mechanical replacement to prevent backplane voltage disturbance. Q: What happens if input voltage exceeds 130 Vac?A: Input overvoltage may trigger internal protection shutdown or component stress on rectification stages. Operation outside specified range is not supported. Q: Does the power supply regulate all backplane voltages independently?A: The module generates multiple regulated rails (+5 Vdc, ±15 Vdc, -24 Vdc) through internal conversion stages feeding the rack backplane distribution network. Field Installation Guidelines Install the module only in Slot 1 of the 3300 rack to maintain backplane power topology integrity. Ensure AC input wiring is segregated from low-level signal cabling to reduce conducted noise coupling. Protective earth bonding shall be verified at rack enclosure level prior to energization. All fusing elements must match factory-rated values to avoid backplane distribution faults. Avoid mechanical stress on edge connectors during insertion to preserve backplane pin alignment.
$200.00 $100.00
-

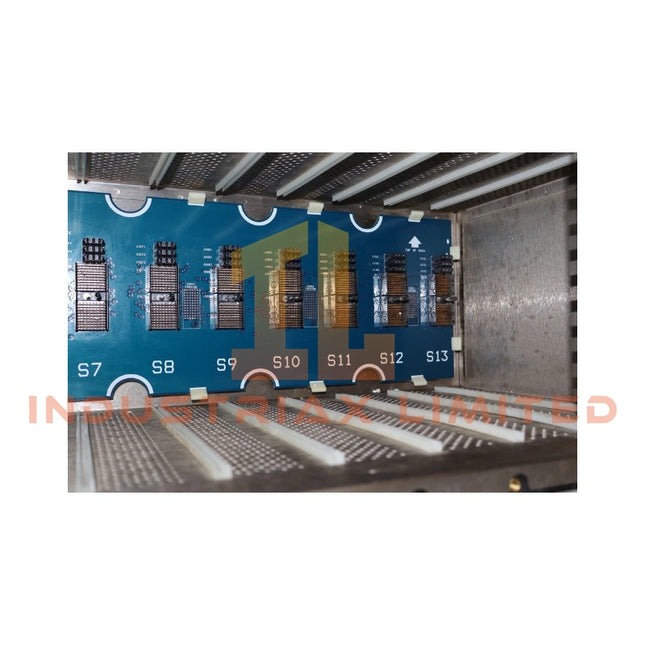

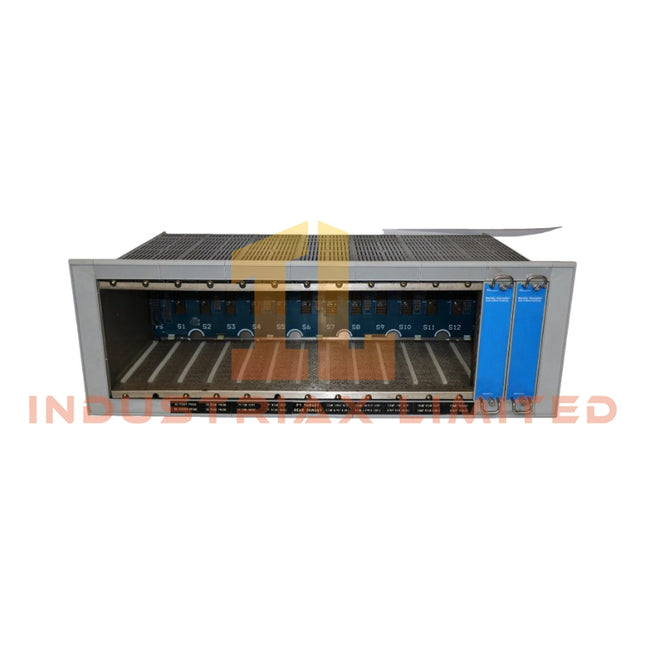

Bently Nevada 3300/05 System Rack | Bently Nevada
Bently Nevada 3300/05 System Rack The Bently Nevada 3300/05 also cataloged as the 3300/05 System Rack operates as a dedicated hardware component for mechanical module mounting, backplane power distribution, and signal routing within the 3300 Machinery Protection System architecture. Suffix Breakdown & Model Matrix No validated suffix segmentation is defined in the provided technical scope for the 3300/05 base rack model. Configuration is determined by rack size option codes (A21 to A37 series) and slot density selection. Hardware Specifications Parameter Specification ModelBrand Bently Nevada 3300/05 Dimensions Depth 424 mm (16.7 in); Width varies by configuration (279.4 mm to 787.4 mm) OperatingTemp 0 degC to +65 degC PowerConsumption Not specified Core Architecture Integrated printed circuit backplane Slot Capacity 4 to 14 monitor positions depending on rack variant Power Distribution Backplane distributed supply from rack power module Signal Routing Rear signal input and relay interface per channel Cross-Talk Suppression and Backplane Signal Integrity Management The 3300/05 rack backplane architecture implements physical separation of monitor channels through defined slot-to-slot routing paths and shielded internal bus structures. Signal integrity is maintained by minimizing inter-channel coupling between vibration monitoring modules, tachometer inputs, and position measurement cards. Rear termination modules provide isolated field wiring interfaces to reduce induced noise propagation across adjacent measurement channels. The design supports stable operation of proximity probe systems under high channel density configurations where mechanical vibration signatures may overlap in frequency domain. Frequently Asked Questions Q: Can monitoring modules be hot-swapped while the rack is energized?A: Hot-swap capability depends on system configuration and installed module type. Mechanical insertion is supported only under controlled maintenance procedures with power isolation recommended for most monitoring cards. Q: How does the backplane distribute power across multiple modules?A: Power is routed through an integrated PCB backplane that distributes supply rails from the rack power module to each installed monitoring position with shared bus structure. Q: Are rear signal modules electrically isolated from front monitoring cards?A: Rear signal termination modules interface through dedicated backplane connectors, providing channel-defined routing but not full galvanic isolation unless specified by module design. Field Installation Guidelines Ensure the rack is mounted on a grounded metallic enclosure or approved panel structure with continuous protective earth bonding. Maintain minimum clearance for airflow across power supply and monitor card sections. All field wiring to rear signal modules shall use shielded twisted pair conductors with single-point shield termination at the designated grounding terminal. Avoid routing high-voltage cables parallel to proximity probe input wiring to prevent electromagnetic coupling. Slot assignments should follow system configuration mapping to ensure correct backplane addressing and alarm bus alignment.
$200.00 $100.00
-

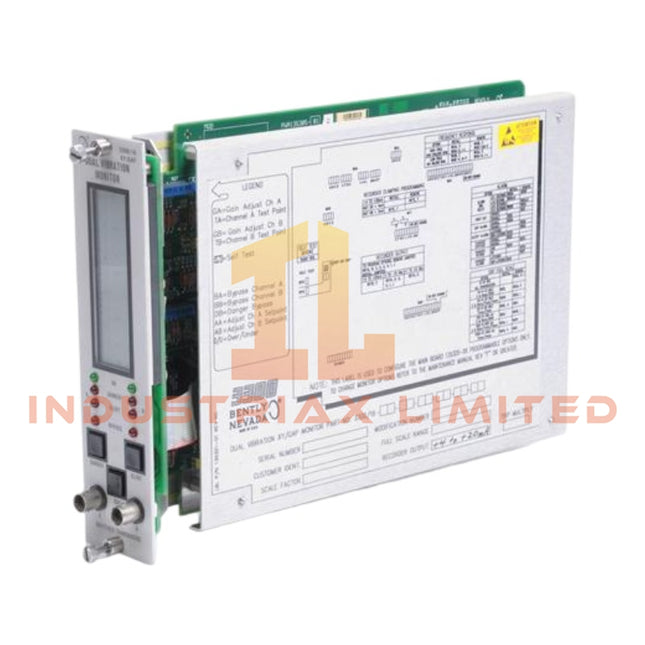

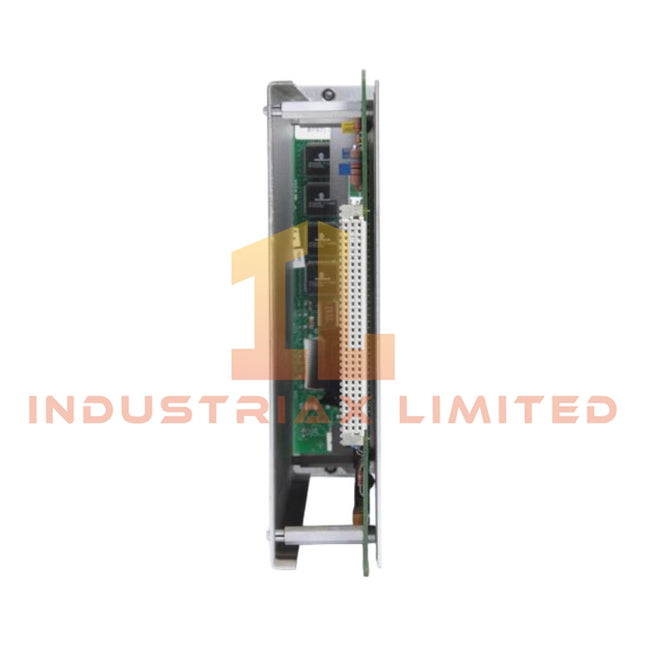

Bently Nevada 3300/16-11-01-02-00-02-00 Bently Nevada Dual Vibration Monitor
Bently Nevada 3300/16-11-01-02-00-02-00 Dual Vibration Monitor Configured for dual-channel vibration measurement in the Bently Nevada 3300 monitoring system, the Bently Nevada 3300/16-11-01-02-00-02-00 (3300/16 Dual Vibration Monitor) provides direct conditioning and electrical conversion of proximity probe signals into proportional vibration outputs and relay logic states. The module processes two independent eddy-current transducer inputs, performs amplitude scaling against a 0-10 mils peak-to-peak full-scale range, and generates both buffered dynamic signals and 4-20 mA analog outputs for downstream monitoring and protection logic. Alarm thresholds are evaluated continuously for Alert and Danger relay actuation. SuffixBreakdown & ModelMatrix The ordering code 3300/16-11-01-02-00-02-00 represents a factory-configured option set. No additional functional decomposition beyond the manufacturer-defined option blocks is applied in this document. Base model: 3300/16 Dual Vibration Monitor Full order code: 3300/16-11-01-02-00-02-00 Option structure: fixed configuration blocks defined by factory build standard Hardware Specifications Parameter Specification ModelBrand Bently Nevada 3300/16-11-01-02-00-02-00 Origin USA Weight approx 1.0 kg (2.2 lbs) Dimensions 3300 rack module format (standard 3300 system chassis compatible) OperatingTemp 0 degC to 65 degC PowerConsumption Backplane powered via 3300 rack supply (typical module load within system limits) Channels 2 independent vibration channels Input Type Eddy-current proximity probe inputs (3300 / 7200 series compatible) Frequency Response 4 Hz to 5 kHz (+/-3 dB) Analog Output 2 x 4-20 mA DC, load up to 600 ohm Buffered Outputs BNC + terminal buffered dynamic signal outputs Relay Output Dual epoxy-sealed relays, 5 A at 120 VAC / 24 VDC Cross-Talk Suppression and Rotor Dynamics Processing (Bently Nevada TSI Architecture) The module implements channel separation logic to reduce cross-coupling between adjacent vibration measurement paths in multi-channel rack configurations. Input conditioning is aligned with eddy-current probe scaling characteristics (typical 200 mV/mil sensitivity) to maintain linear response across the defined air-gap voltage range. Rotor dynamic behavior is represented through amplitude-domain conversion of shaft relative motion, where phase integrity is preserved across buffered outputs to support external diagnostic systems. Signal isolation between channels is maintained at the front-end conditioning stage to prevent measurement contamination during high-energy mechanical transients. FrequentlyAskedQuestions Q: Can the 3300/16 module operate with hot-swap insertion in an active rack?A: The module is not designed for hot-swap operation. Insertion or removal requires system power isolation to prevent backplane transient disturbance and relay state instability. Q: What is the impact of backplane loading on signal stability?A: The module draws power directly from the 3300 rack backplane. Excessive cumulative rack loading can introduce voltage droop affecting analog scaling accuracy across all installed modules. Q: Are the buffered outputs isolated between channels?A: Channel buffered outputs are independently conditioned, but share common module grounding. External isolation must be implemented at system integration level if galvanic separation is required. FieldInstallationGuidelines The module shall be installed only in a compatible Bently Nevada 3300 rack chassis with verified backplane integrity. Ensure all proximity probe wiring uses shielded twisted pair conductors with single-point grounding at the monitor end to prevent ground loop formation. Maintain minimum separation between signal cabling and high-voltage conductors to reduce electromagnetic interference coupling into low-level proximity signals. Probe extension cable connections must maintain proper coaxial continuity to preserve eddy-current signal linearity. All relay output wiring shall be routed separately from analog signal paths. Verify terminal torque values according to rack installation specification to avoid intermittent contact resistance during vibration exposure.
$200.00 $100.00
-

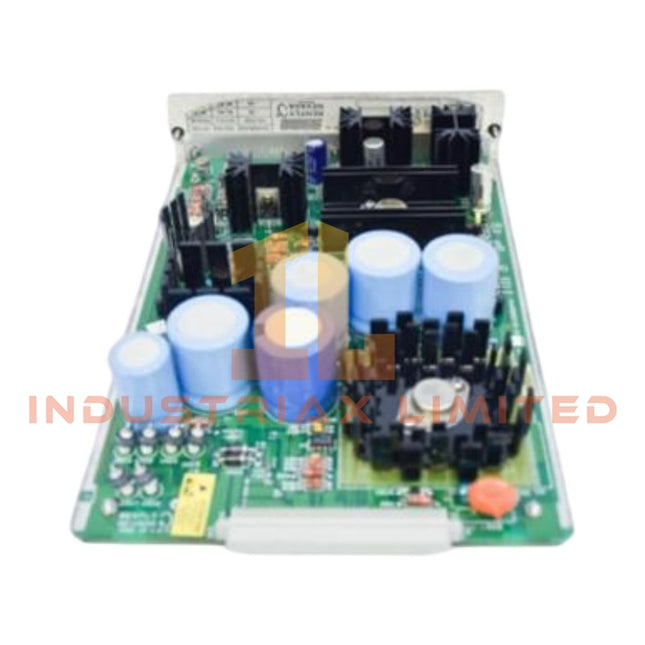

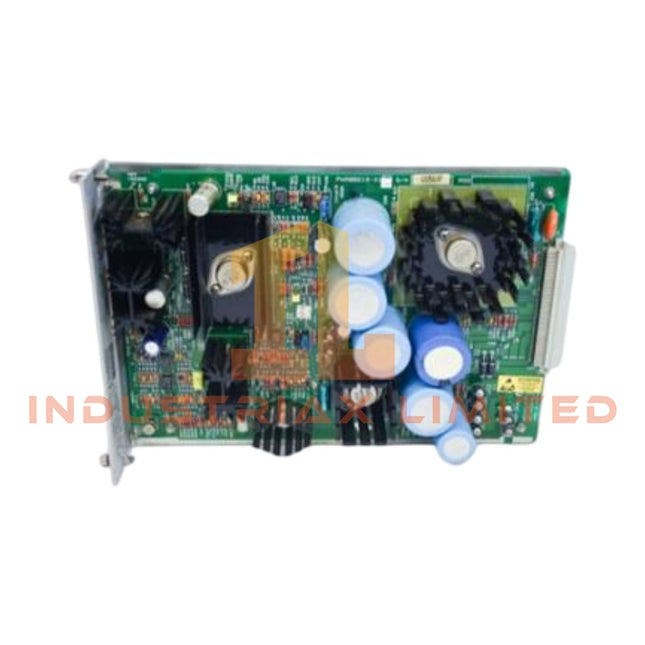

Bently Nevada AC Power Supply Module | Bently Nevada 3300/12-02-22-00
Bently Nevada 3300/12-02-22-00 AC Power Supply Module Configured for direct electrical power conversion in Bently Nevada 3300 Rack System, the Bently Nevada 3300/12-02-22-00 (3300/12 AC Power Supply Module) provides direct physical/electrical execution. The module converts 175 to 250 VAC input into regulated DC backplane voltages for rack-level monitor and transducer supply distribution. Suffix Breakdown & Model Matrix 3300/12: AC Power Supply Module -02: 220 VAC input range option (175 to 250 VAC, 45 to 65 Hz) -22: Agency approval package (CSA/NRTL/C, CE/ATEX variants depending on build) -00: Standard factory configuration, no modifications Hardware Specifications Parameter Specification Model 3300/12-02-22-00 Brand Bently Nevada Origin USA Weight 1.41 kg Dimensions Not specified OperatingTemp 0 degC to 65 degC PowerConsumption 210 VA max Input Voltage 175 to 250 VAC Input Frequency 45 to 65 Hz Output Rails +24 VDC, -24 VDC, +5 VDC (rack backplane distribution) Eddy-Current Probe Scaling and Backplane Voltage Validation The module participates in rack-level power integrity control where regulated DC rails support signal conditioning paths for proximity probe channels. In Bently Nevada 3300 architectures, eddy-current probe scaling is dependent on stable excitation and return signal referencing, where backplane voltage drift directly affects gap voltage validation thresholds (typically referenced against -10 VDC calibration targets at monitor input stages). Cross-talk suppression between adjacent monitor modules is indirectly maintained through low-ripple DC distribution and controlled grounding of the rack chassis reference plane. The power supply output impedance profile defines transient response behavior during channel load switching events. Frequently Asked Questions Q: Can the module be hot-swapped while the 3300 rack is energized?A: The module is not designed for live insertion under load conditions. Removal under power may introduce backplane voltage collapse and transient reset across connected monitor modules. Q: What is the backplane current limitation behavior under full load?A: Output rails are internally regulated, but total rack consumption must remain within the 210 VA input envelope. Overload results in undervoltage detection and Not OK LED assertion. Q: Does the module support redundancy configuration within the rack?A: The 3300/12 architecture does not implement parallel redundant power supply sharing. Redundancy is achieved at system level, not module-level load sharing. Field Installation Guidelines Install only in the leftmost power supply slot of the 3300 rack backplane. Ensure AC input wiring is isolated from signal cabling to reduce electromagnetic coupling. Verify chassis grounding integrity prior to energizing the rack. Confirm fuse integrity before insertion into powered systems. Maintain minimum clearance for airflow across rack-mounted modules. Do not bend or stress backplane connector pins during insertion.
$200.00 $100.00
-

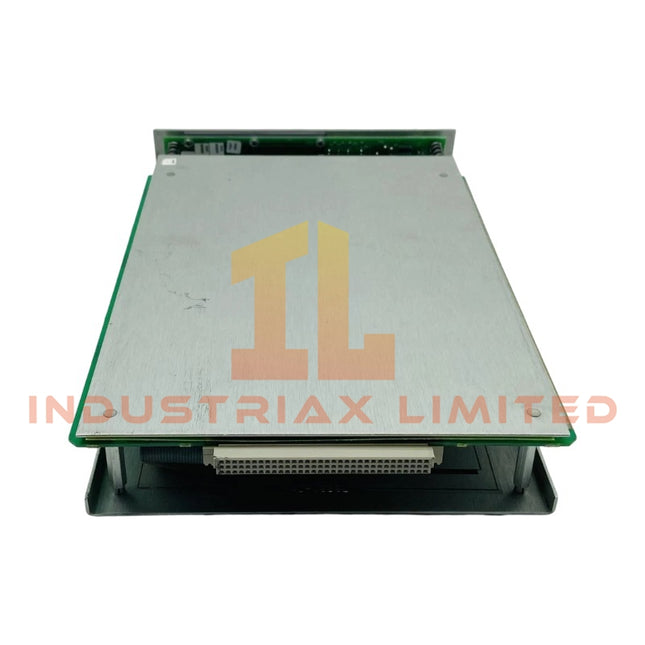

Bently Nevada Bently Nevada 3300/65-14-01-00-00-01-00 Dual Thrust Position Monitor
Bently Nevada 3300/65-14-01-00-00-01-00Dual Thrust Position Monitor Configured for axial shaft displacement measurement in dual-channel thrust monitoring loops within Bently Nevada 3300 machinery protection platforms,the Bently Nevada 3300/65-14-01-00-00-01-00 (3300/65 Dual Thrust Position Monitor) provides direct physical signal conditioning and comparison of two independent proximity probe inputs. It accepts eddy-current proximity transducer signals and performs differential center-reference tracking for thrust position evaluation. Suffix Breakdown & Model Matrix 3300/65: Dual Thrust Position Monitor base unit 14: Full-scale range 50 - 0 - 50 mils (8 mm proximity probe configuration) 01: Transducer type 3300/7200 series 8 mm Proximitor system (200 mV/mil) 00: No agency approval option 00: Standard intrinsic safety grounding configuration 01: Internal barrier configuration installed 00: Standard display and internal options Hardware Specifications Parameter Specification ModelBrand Bently Nevada 3300/65-14-01-00-00-01-00 Origin USA Weight 1.4 kg Dimensions Not specified (standard 3300 rack module form factor) OperatingTemp -20 degC to +65 degC Channels 2 independent thrust position channels Input Type 3300/7200 series 8 mm eddy-current proximity probes Scale Factor 200 mV/mil Output Signals 4-20 mA, 1-5 VDC, buffered BNC dynamic outputs Relay Outputs Alert and Danger configurable relays Eddy-Current Probe Scaling and Gap Voltage Validation The 3300/65 processes eddy-current probe gap voltage derived from 3300/7200 proximity systems with nominal -10 VDC near-zero reference tracking. Channel comparison logic evaluates axial shaft position relative to calibrated center zero. Signal integrity is maintained through cross-channel validation and loop continuity supervision, minimizing measurement drift between dual probe inputs. Frequently Asked Questions Q: Can the module operate with mixed probe series (3300 and 7200)?A: The input conditioning stage supports both 3300 and 7200 8 mm Proximitor systems provided the scale factor remains 200 mV/mil and calibration is matched. Q: What happens if one channel signal is lost?A: The affected channel will drive the OK LED to fault state, while relay logic may enter configured bypass or trip state depending on alarm configuration. Q: Is hot-swap supported in live rack operation?A: The module supports rack insertion under powered conditions only when the backplane is designed for hot insertion; signal terminals must remain isolated during replacement. Field Installation Guidelines Install module only in compatible Bently Nevada 3300 system rack backplane slots Maintain shield continuity for proximity probe coaxial cables to prevent noise coupling Ensure probe gap voltage is centered near -10 VDC during static calibration Verify channel A and B probe polarity alignment before enabling relay outputs Avoid routing sensor wiring parallel to high voltage conductors or VFD output cables Confirm internal barrier configuration matches hazardous area requirements before energization
$200.00 $100.00
-

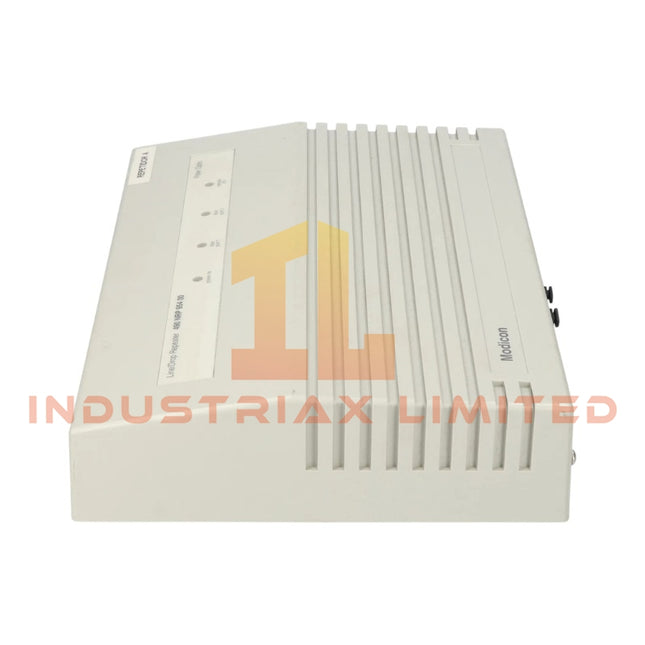

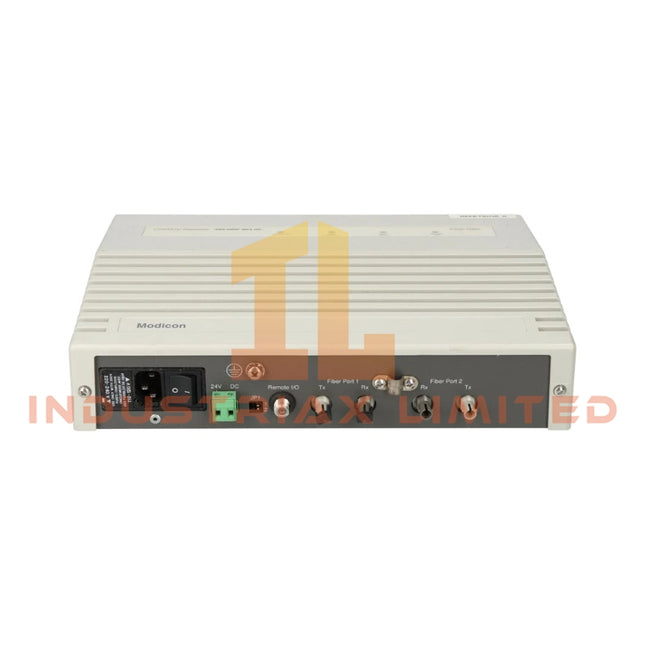

Schneider Electric Modicon Quantum Schneider Electric Remote I/O Fiber Optic 490NRP95400
Schneider Electric 490NRP95400 RIO Drop Module Configured for fiber optic remote I/O data exchange in Modicon Quantum RIO networks, the Schneider Electric 490NRP95400 (490NRP95400 RIO drop module) provides direct physical/electrical execution for distributed I/O node linking across Modicon Quantum backplane and remote fiber segments. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 490NRP95400 Origin US Weight 3.212 kg (7.08 lb) Dimensions 15 cm x 39.8 cm x 29.9 cm (Package 1) Product Function Fiber optic RIO drop interface module Network Type Modicon Quantum RIO network Communication Medium Fiber optic link Industrial Control Communication Behavior (Schneider Electric PLC Integration Layer) The Schneider Electric Modicon Quantum RIO architecture implements deterministic backplane bus communication between CPU racks and distributed remote I/O drops. The 490NRP95400 module functions as a fiber optic termination and relay node for remote rack segmentation, supporting synchronous I/O scanning across extended physical distances. Within Quantum systems, backplane bus cycle timing is dependent on CPU scan execution and RIO polling intervals. The module participates in cyclic I/O refresh propagation, where remote drops maintain slot-based addressing consistency across fiber segments. Firmware compatibility is aligned with Quantum series RIO communication stack, ensuring node-level synchronization during rack expansion or replacement operations. Signal integrity across fiber optic media is maintained through optical isolation of the RIO segment, reducing susceptibility to electrical noise coupling between distributed I/O cabinets. Frequently Asked Questions Q: Does the 490NRP95400 support hot-swap replacement in a live Quantum RIO network?A: Module replacement typically requires controlled rack power-down to preserve RIO node addressing integrity and avoid backplane resynchronization faults. Q: How is communication latency handled across fiber optic RIO drops?A: Latency is governed by Quantum RIO scan cycle timing rather than physical fiber propagation delay, as synchronization is cycle-driven at controller level. Q: Can multiple RIO drops be chained on a single fiber segment?A: Architecture supports segmented node distribution, but topology is constrained by Quantum RIO addressing and fiber network design rules. Field Installation Guidelines Fiber optic termination must follow clean connector handling procedures, ensuring dust-free mating surfaces prior to insertion. Minimum bend radius for fiber cables must be maintained according to industrial fiber handling standards to avoid attenuation loss. RIO drop addressing must be verified during commissioning to prevent node duplication within Quantum backplane configuration. Shielding is not required for fiber segments, but grounding of associated rack enclosures must be implemented to maintain system-wide equipotential bonding. During installation, ensure that module seating in the rack backplane is fully engaged to avoid intermittent RIO communication faults during scan cycles.
$200.00 $100.00
-

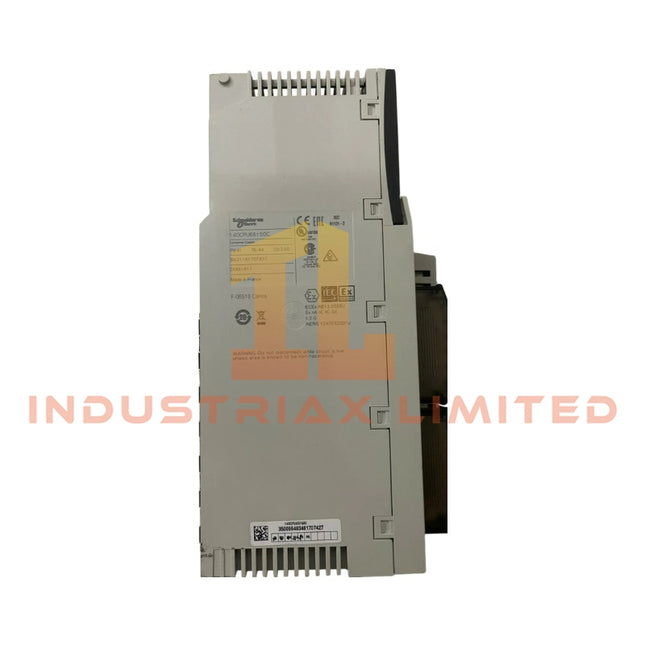

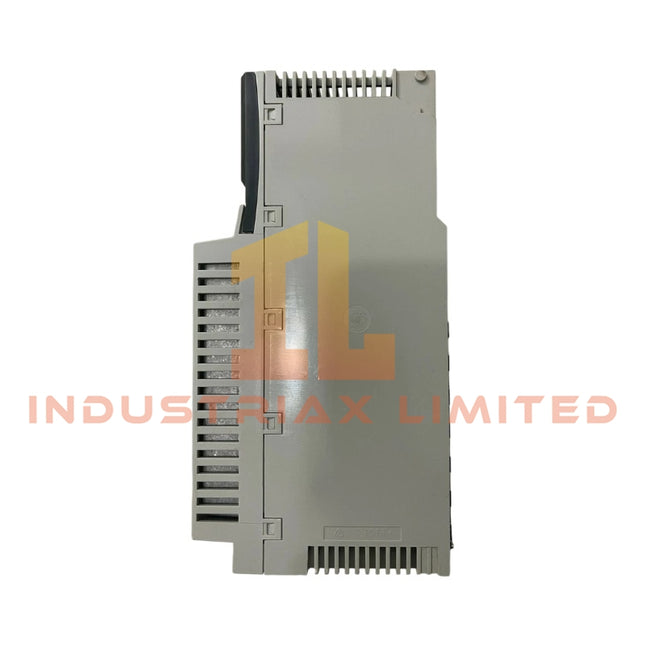

Schneider Electric 140CPU65150C Schneider Electric Modicon Quantum Unity Processor
Schneider Electric 140CPU65150C Unity Processor Modicon Quantum Configured for deterministic program execution in Modicon Quantum automation platform backplane architecture, the Schneider Electric 140CPU65150C (140CPU65150C Unity Processor) provides direct CPU-level scan control and communication arbitration across local and remote I/O racks within Quantum distributed control topology. The module operates as a Unity processor with 166 MHz clock frequency and 768 kB internal memory, coordinating process image handling, fieldbus routing, and multi-rack synchronization via Modbus Plus and Ethernet TCP/IP interfaces. Suffix Breakdown & Model Matrix No validated suffix segmentation data is defined for 140CPU65150C within the provided technical dataset. The model is treated as a single integrated orderable CPU unit within the Modicon Quantum CPU family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU65150C Processor Clock 166 MHz Memory 768 kB Local Rack Support 2 racks Slot Capacity Up to 16 slots (platform dependent configuration) Distributed I/O Up to 63 stations (Modbus Plus network dependent) Remote I/O Capacity S908 / Ethernet Quantum / X80 compatible Discrete I/O Handling Up to 31744 inputs / 31744 outputs (remote) Analog I/O Handling Up to 1984 inputs / 1984 outputs (remote S908) Communication Interfaces Ethernet TCP/IP, Modbus, Modbus Plus, USB Optional Modules Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) Schneider Electric Backplane Deterministic Execution Architecture The 140CPU65150C is integrated into the Modicon Quantum backplane bus system, where scan cycle execution is synchronized with rack-level arbitration logic. CPU-to-module communication is handled via deterministic backplane signaling, supporting predictable I/O refresh timing under mixed discrete and analog load conditions. Firmware execution model supports multi-network routing between Ethernet TCP/IP and Modbus Plus segments, enabling simultaneous local rack processing and distributed station coordination. I/O density scaling is managed at system level through rack expansion logic, allowing up to 31 remote drops per Ethernet Quantum topology depending on configuration constraints. Frequently Asked Questions Q: Does the 140CPU65150C support hot-swap of I/O modules?A: Hot-swap capability is dependent on Quantum rack backplane design and installed module type. CPU continues scan execution during non-disruptive module replacement only if system configuration supports rack-level isolation. Q: What is the backplane communication behavior under high I/O density?A: Backplane traffic is scheduled deterministically by CPU scan cycle. Increased I/O density results in longer scan times but does not alter arbitration structure. Q: Can Ethernet and Modbus Plus run simultaneously on this CPU?A: Yes. The processor supports concurrent Ethernet TCP/IP and Modbus Plus communication stacks with independent routing paths. Field Installation Guidelines Ensure that the CPU module is inserted into a properly grounded Modicon Quantum rack with verified backplane continuity. Shielded communication cabling must be terminated according to single-point grounding principles to avoid ground loop formation across Modbus Plus segments. Maintain separation between Ethernet and high-noise power conductors to preserve signal integrity. Backplane connectors must be fully seated to guarantee deterministic scan synchronization across all installed I/O modules.
$200.00 $100.00
-

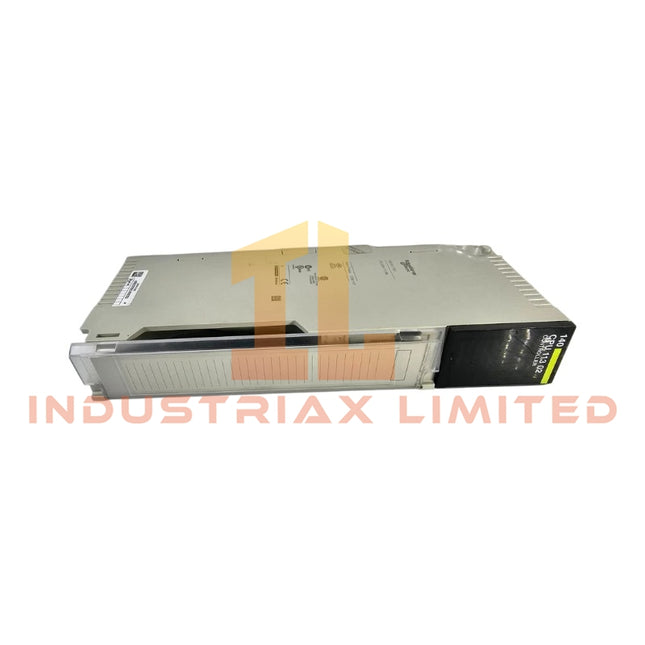

Schneider Electric 140CPU11302 Schneider Electric Modicon Quantum Processor Module
Schneider Electric 140CPU11302 Processor Module Modicon Quantum Configured for deterministic PLC scan execution and serial/network communication handling in Modicon Quantum automation infrastructure, the Schneider Electric 140CPU11302 Modicon Quantum - 1 Modbus RS232, 1 Modbus Plus (80186 Processor Module) provides direct backplane-based control processing for I/O coordination and Modbus protocol execution across Quantum system racks. Suffix Breakdown & Model Matrix No formal suffix decomposition is defined in the provided dataset for this processor module. The designation is treated as a single fixed hardware identifier: 80186 within the Modicon Quantum processor family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU11302 Weight 0.3 kg (0.7 lb US) Dimensions Not specified in provided data OperatingTemp 0 to 60 degC PowerConsumption 780 mA backplane current requirement CPU Architecture 80186 microprocessor Clock Frequency 20 MHz Internal Memory 109 kB RAM Communication Ports 1 x Modbus RS232, 1 x Modbus Plus I/O Capacity 64 I/64 O local max, 64 I/64 O remote max Schneider Electric Backplane Communication & Modbus Execution Profile The module executes cyclic scan control via Modicon Quantum rack backplane arbitration, synchronizing distributed I/O words and remote drops through deterministic update cycles. Modbus RS232 is used for point-to-point serial data exchange, while Modbus Plus supports multi-drop network segmentation with token-based access control. Processor timing behavior is defined by 0.3 to 1.4 ms instruction execution characteristics (LL984 environment), enabling predictable scan loop sequencing. Battery-backed RAM supports parameter retention under power loss conditions, maintaining runtime integrity across restart cycles. Frequently Asked Questions Q1: Can the 80186 processor be hot-swapped in a live Quantum rack?A1: The module is not designed for hot-swap operation. Removal or insertion requires power-down of the rack backplane to avoid bus arbitration faults and memory state corruption. Q2: What is the backplane current impact of this processor?A2: The module requires approximately 780 mA from the Quantum backplane supply, which must be accounted for in total rack power budgeting. Q3: Does Modbus Plus operate independently of RS232 on this processor?A3: Yes. RS232 and Modbus Plus interfaces operate as independent communication channels managed by the processor’s dual-port communication handling logic. Field Installation Guidelines The processor must be installed into a fully de-energized Modicon Quantum rack. Ensure correct alignment of the backplane connector before insertion to prevent pin damage or bus misalignment. Shielded communication cabling is required for both RS232 and Modbus Plus segments, with shield termination at a single earth reference point to minimize ground loop currents. Maintain separation between communication wiring and high-voltage conductors to reduce electromagnetic coupling. Verify rack power budget compliance prior to energization, with special attention to cumulative backplane current loading. Battery module should be installed and verified for retention capability prior to commissioning.
$200.00 $100.00
-

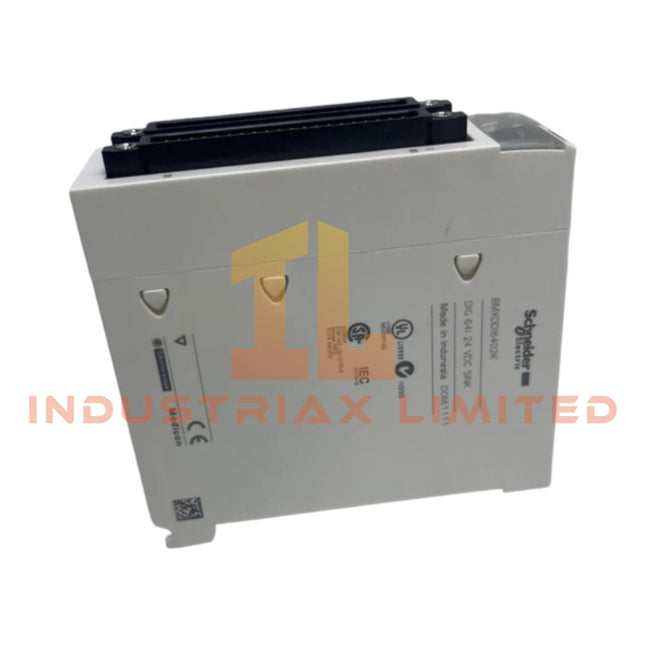

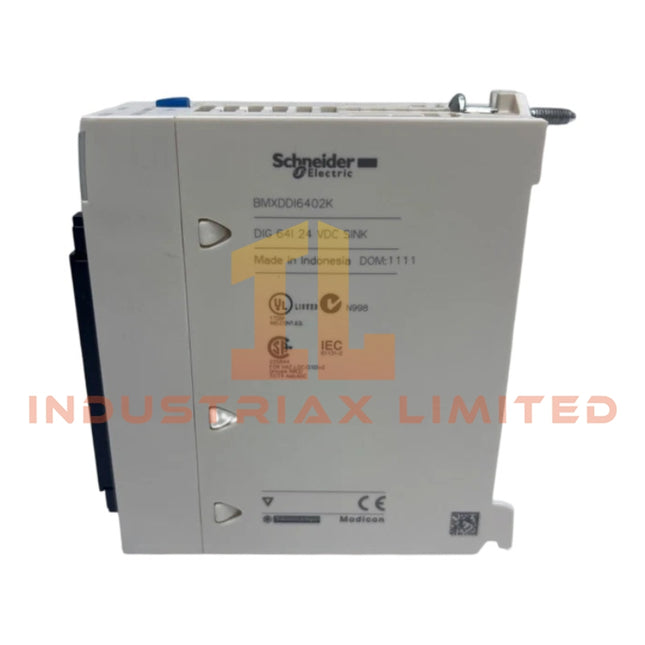

Schneider Electric BMXDDI6402K Schneider Electric Modicon X80 Discrete Input Module
Schneider Electric BMXDDI6402K Discrete Input Module Configured for acquisition of 24 VDC discrete field signals in Modicon X80 backplane systems, the Schneider Electric BMXDDI6402K (BMXDDI6402K Discrete Input Module) provides direct physical/electrical execution for 64-channel digital input scanning across X80 distributed I/O architectures. The module operates as a 64-channel isolated input interface with positive logic current sink configuration, designed for 24 V DC sensor environments. Signal detection thresholds support standard industrial switching levels with diagnostic feedback per channel. Internal processing is synchronized via the X80 backplane with defined response time behavior for deterministic input acquisition. Suffix Breakdown & Model Matrix No explicit suffix segmentation or variant encoding is defined in the provided manufacturer dataset for BMXDDI6402K. The identifier is treated as a single fixed-order catalog number. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXDDI6402K Weight 0.145 kg OperatingTemp 0 degC to 60 degC PowerConsumption 4.3 W Input Channels 64 discrete inputs Input Type Isolated, current sink (positive logic) Input Voltage 24 V DC positive Input Current 0.6 mA Backplane Consumption 160 mA at 3.3 V DC Response Time 4 ms typical, 7 ms max Sensor Supply Range 19 V to 30 V DC Insulation Resistance > 10 MOhm at 500 V DC Schneider Electric X80 Backplane Input Architecture The module integrates into Modicon X80 rack systems using a high-speed backplane communication structure supporting synchronized I/O refresh cycles. Each channel is electrically isolated to reduce cross-channel interference under dense wiring conditions. Input filtering is implemented to stabilize signal acquisition under industrial noise conditions typical of distributed cabinet wiring. Channel diagnostics are individually indicated via per-point LEDs, enabling direct field-level fault localization without external test instrumentation. Backplane power draw at 3.3 V DC remains within low-load I/O module class consumption envelope (160 mA typical), supporting multi-module rack density planning. Frequently Asked Questions Q: Can the module be hot-swapped under energized rack conditions?A: The BMXDDI6402K supports Modicon X80 rack insertion/removal behavior when system configuration permits, however field power sequencing must follow backplane and rack manufacturer constraints to avoid transient I/O state instability. Q: Does channel isolation prevent cross-talk between adjacent inputs?A: Each input channel is isolated with internal impedance of approximately 40 kOhm and designed to limit electrical coupling between channels under 24 V DC switching conditions. Q: What is the impact of backplane load on multi-module configurations?A: Each module contributes approximately 160 mA at 3.3 V DC to the backplane load budget; total rack consumption must be aggregated across all installed X80 modules. Field Installation Guidelines DIN rail rack insertion shall be performed with backplane power removed unless system architecture explicitly supports live insertion procedures. Field wiring must maintain segregation between input signal bundles and power conductors to minimize inductive coupling. Shield termination should be implemented at cabinet ground reference points only, avoiding dual-ended grounding loops on 24 V DC discrete circuits. Channel grouping should respect fuse-protected input groups (0.5 A fast-blow external protection per group). Ambient installation must remain within 0 to 60 degC operating envelope with humidity control below condensation threshold conditions.
$200.00 $100.00
-

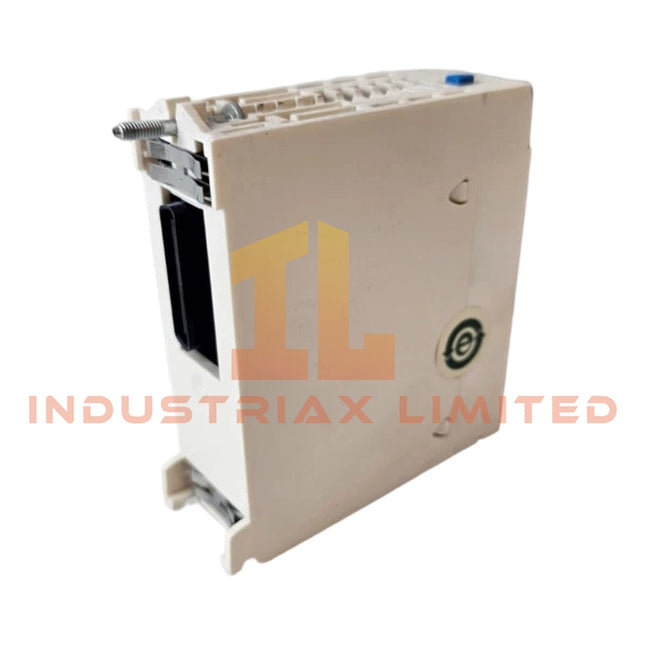

Schneider Electric Schneider Electric BMXDDO6402K Modicon X80 Discrete Output Module
Schneider Electric BMXDDO6402K Modicon X80 Discrete Output Module Configured for high-density digital switching of field actuators in Modicon X80 I/O architecture, the Schneider Electric BMXDDO6402K (BMXDDO6402K Discrete Output Module) provides direct physical/electrical execution of 24 VDC positive logic output commands across 64-channel backplane-controlled points. Suffix Breakdown & Model Matrix BMXDDO6402K is a single-order discrete output module designation within the Modicon X80 family.No validated manufacturer-published suffix segmentation beyond base functional code is available in the provided dataset. Hardware Specifications Parameter Specification Model BMXDDO6402K Brand Schneider Electric PowerConsumption 160 mA at 3.3 VDC (backplane supply) Output Type Solid-state discrete output Channels 64 Output Logic Positive Output Voltage 19...30 VDC (nominal 24 VDC) Output Current 0.1 A per channel Max Module Current 6.4 A Response Time 1.2 ms Paralleling Up to 3 outputs Protection Short-circuit, overload, overvoltage, reverse polarity Backplane Communication & Deterministic I/O Handling (Modicon X80 Platform Integration) The module operates as a backplane-driven discrete execution node within the Modicon X80 rack architecture. Output state transitions are synchronized through deterministic internal bus scanning, ensuring consistent update alignment across distributed rack modules. Channel update latency is governed by internal scan scheduling rather than field-side feedback loops. Electrical isolation and per-channel protection stages reduce cross-channel propagation effects under inductive switching conditions. Frequently Asked Questions Q: Can outputs be paralleled for higher current drive?A: Yes. Paralleling is supported up to 3 outputs, subject to shared load distribution and thermal dissipation constraints. Q: Does the module provide per-channel short-circuit shutdown?A: Yes. Each channel integrates electronic current limiting and fault isolation behavior using internal protection circuitry. Q: What is the response behavior under overload conditions?A: The output stage transitions into current-limited operation with protective cutoff behavior when thresholds are exceeded. Field Installation Guidelines The module shall be installed only in a compatible Modicon X80 rack with verified backplane alignment. Ensure correct seating to maintain signal integrity across the internal bus connector. Field wiring must comply with 24 VDC separation rules, maintaining segregation between power conductors and low-level control wiring. Inductive loads require external suppression elements to limit voltage transients during switching. Channel grouping for high duty-cycle loads should consider cumulative thermal loading across adjacent outputs. Shielding and grounding should be terminated according to cabinet-level equipotential bonding practice to reduce noise coupling into adjacent I/O modules.
$200.00 $100.00
