PLC systems and modules deliver flexible automation for industries worldwide. Our inventory includes controllers, input/output modules, and communication units from Allen-Bradley, Siemens, GE, and other leading brands.
PLC Systems & Modules
-
Schneider Electric BMEH582040 Modicon M580 Schneider Electric Redundant Processor Module
Schneider Electric BMEH582040 Redundant Processor Module Configured for redundant CPU execution and high-availability control in Modicon M580 automation architecture, the Schneider Electric BMEH582040 (BMEH582040 redundant processor module) provides direct physical and communication execution within Ethernet-based PLC backplane and remote I/O synchronization systems. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMEH582040 OperatingTemp 0 to 60 degC PowerConsumption 270 mA at 24 V DC Processor Architecture Redundant CPU module (HSBY) Communication Interfaces 1 x Ethernet TCP/IP service port, 2 x Ethernet TCP/IP device network, 1 x Ethernet HSBY port, USB mini-B Remote I/O Capacity Up to 8 remote I/O stations (2 racks per X80 remote drop) Distributed Device Capacity Up to 64 devices Memory 8 MB program RAM, 768 kB data RAM, 10 kB system RAM, 4 GB expandable flash Task Structure 1 fast periodic task, 1 cyclic/periodic master task Instruction Performance Up to 10 Kinst/ms (Boolean), 7.5 Kinst/ms mixed load Environmental Rating 0 to 60 degC operating, -40 to 85 degC storage Schneider Electric Redundant Control and Ethernet Backplane Synchronization The module operates within a dual-processor redundant execution scheme using high-speed HSBY synchronization over dedicated Ethernet interconnect. Within the Schneider Electric Modicon M580 platform, deterministic execution is maintained through segmented Ethernet TCP/IP channels separating service traffic from device-level I/O scanning. Backplane communication supports parallel redundancy alignment between primary and standby processors, ensuring continuous task state replication during switchover events. Firmware execution integrity is dependent on synchronized flash image alignment across both processor nodes, with Ethernet-based heartbeat monitoring governing failover arbitration logic. Frequently Asked Questions Q: Does the BMEH582040 support hot-swapping during runtime operation?A: The processor module is designed for redundant operation; however, hot-swap behavior is governed by rack configuration and system-level redundancy state. CPU replacement typically requires controlled redundancy transfer to standby before physical removal. Q: How is redundancy synchronization handled between primary and standby processors?A: Synchronization is performed via dedicated HSBY Ethernet channel, continuously mirroring system memory, task state, and I/O image tables between both processors. Q: What is the effect of Ethernet device network separation?A: Separation of service and device networks isolates configuration traffic from real-time I/O scanning, reducing deterministic jitter in control execution cycles. Field Installation Guidelines Ensure complete removal of 24 V DC supply before module insertion or removal. Verify correct alignment of HSBY redundant communication interface before seating the module into the rack. Maintain shielded Ethernet cabling with proper grounding at cabinet entry point to minimize EMI coupling. Separate service Ethernet and device network routing to avoid cross-traffic interference. Confirm firmware parity between redundant CPU pairs prior to system start-up.
$200.00 $100.00
-
Schneider Electric Schneider Electric TSXP47425 Processor Module
Schneider Electric TSXP47425 Processor Module Configured for processing and scan-cycle execution in Modicon Premium backplane architecture, the Schneider Electric TSXP47425 (TSXP47425 Processor Module) provides direct physical/electrical execution within Modicon Premium PLC rack systems. The module performs centralized logic processing, I/O task scheduling, and communication handling through the rack backplane bus structure. Suffix Breakdown & Model Matrix TSXP47425 is a fixed ordering reference within the Modicon Premium processor family. No field-encoded suffix structure or functional sub-identifier segmentation is defined. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXP47425 Weight 1.285 kg (packaged) Dimensions 10 cm x 23 cm x 23.5 cm (packaged) OperatingTemp Not specified PowerConsumption 5 VDC, approx. 350 mA to 500 mA (backplane supply) Memory Capacity 128 KB internal RAM Expanded Memory PCMCIA expansion supported Max Digital I/O Up to 1024 points Max Analog I/O Up to 80 channels Application Tasks Master / Fast / Event-driven task execution Communication Ports TER port, AUX serial interface Slot Width Single-slot module Backplane Bus Communication and Deterministic Execution The TSXP47425 processor operates on a deterministic backplane bus structure where scan cycle execution is synchronized with internal rack timing. I/O refresh operations are executed through cyclic memory mapping rather than external network arbitration. Backplane communication velocity is maintained through fixed scan scheduling, ensuring consistent task execution timing across distributed rack modules. Firmware-level task separation (master, fast, event) allows deterministic prioritization of process logic versus communication servicing without external jitter dependency. Frequently Asked Questions Q: Does the TSXP47425 support hot swapping during operation?A: Hot swap capability depends on rack configuration, but processor removal under energized conditions is not supported. Power isolation is required prior to replacement. Q: Can memory be expanded beyond internal RAM?A: Yes. Expansion is supported via PCMCIA memory cards for application code and data storage extension. Q: How is I/O synchronization handled across the rack?A: I/O synchronization is executed through backplane cyclic refresh linked to PLC scan cycles, not through external communication networks. Field Installation Guidelines Install the module only into a compatible Modicon Premium rack slot with power removed. Ensure edge connector alignment before full insertion to avoid pin deformation. Maintain separation between communication wiring and high-power conductors to reduce electromagnetic coupling on serial interfaces. Verify battery presence prior to commissioning to prevent application memory loss during power interruption. Ensure rack grounding impedance meets standard industrial control cabinet grounding practices to stabilize backplane reference potential.
$200.00 $100.00
-
Schneider Electric Schneider Electric TSXDST1682 | Output Module
Schneider Electric TSX DST 1632 Output Module The Schneider Electric TSXDST1632 also cataloged as the TSX DST 1632 Relay Output Module operates as a discrete output hardware component for digital actuation control within Modicon TSX PLC backplane architectures. It provides direct electrical switching via relay contacts across 16 output points arranged in modular grouped configuration. Suffix Breakdown & Model Matrix No structured suffix segmentation is defined for TSX DST 1632. The model is treated as a single fixed ordering code without field-expandable option encoding. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXDST1632 OperatingTemp 0 to 60 degC (derating above 40 degC) PowerConsumption 12 V: 25 mA; 12 Vp: 38 mA per point at logic state 1 Output Type Relay output, 16 channels (4 groups of 4) Rated Load 24 VDC; resistive 0.2 W to 50 W; inductive 0.2 W to 25 W Response Time OFF->ON max 15 ms; ON->OFF max 20 ms Leakage Current Max 0.2 mA at state 0 Supply Voltage 10 V to 30 V (including ripple) Logic Level Positive logic Backplane Communication and I/O Density Scaling Within Modicon TSX rack systems, the TSX DST 1632 integrates via deterministic backplane signaling, where output refresh cycles are synchronized with PLC scan execution. I/O density scaling is handled through grouped 4-point relay banks, reducing address fragmentation in TSX configuration memory. Compatibility with TSX DET 16 12 input modules ensures consistent channel mapping across mixed discrete I/O racks. Signal propagation is constrained by internal relay actuation latency rather than network jitter, maintaining fixed scan-to-output determinism under firmware-controlled cycle timing. Frequently Asked Questions Q: Can the TSX DST 1632 outputs be hot-swapped during operation?A: No hot-swap capability is defined. Module insertion/removal must be performed under de-energized rack conditions to avoid backplane signal disturbance. Q: What is the effect of inductive loads on output switching behavior?A: Inductive loads up to specified limits require suppression (flyback diode or RC snubber) to maintain relay contact integrity and limit overvoltage stress. Q: Does the module support mixed AC/DC load switching?A: The relay contacts are electrically passive switching elements; load compatibility is determined by contact rating limits rather than internal polarity constraints. Field Installation Guidelines Ensure rack power is isolated before module insertion into TSX backplane slots. Verify correct alignment of edge connector pins to prevent bent terminal contacts. Maintain separation between output wiring and high-frequency or power conductors to minimize inductive coupling. Shielded cable grounding should be terminated at a single chassis reference point to avoid ground loop currents. Relay output wiring should respect current derating curves for elevated ambient temperatures above 40 degC.
$200.00 $100.00
-
Schneider Electric DC Discrete Input Module | TSXDET3242 Schneider Electric
Schneider Electric TSX Series 7 - 32 I 24 V DC Discrete Input Module Configured for 24 V DC digital signal acquisition in TSX Series automation architectures, the Schneider Electric TSX Series 7 - 32 I 24 V DC (TSX Series 7 32 I 24 V DC discrete input module) provides direct electrical interface for binary field device state monitoring within PLC backplane-based control systems. Suffix Breakdown & Model Matrix The designation “TSX Series 7 - 32 I 24 V DC” indicates a TSX Series platform module with 32-channel discrete input capacity and 24 V DC nominal input compatibility. No further structured suffix decomposition is defined in the provided data set; additional internal ordering code segmentation is not specified. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSX Series 7 - 32 I 24 V DC Weight 500 g (packing unit) Dimensions 5.0 cm x 19.0 cm x 19.5 cm Input Type Discrete digital input Input Voltage 24 V DC Channel Capacity 32 I (32 points) System Interface TSX backplane connection Backplane Bus Communication and I/O Density Scaling The TSX Series 7 discrete input architecture operates through PLC backplane bus coupling, where channel state acquisition is synchronized via deterministic scan cycles. In TSX-class systems, I/O density scaling is defined by rack slot allocation and addressing resolution across the internal communication bus. Backplane transfer timing is dependent on CPU scan rate and module addressing map consistency, with no external field protocol conversion required for direct digital input registration. Frequently Asked Questions Q: Can this module be hot-swapped under live 24 V DC field conditions?A: Hot-swap capability is dependent on TSX rack configuration and system power isolation design. In typical configurations, removal under load is not permitted unless rack supports controlled de-energized slot replacement. Q: Does the module impose measurable backplane load during simultaneous 32-channel activation?A: Backplane current draw is managed at rack level; channel activation does not directly increase backplane load per input state, but aggregate module consumption is fixed per design. Q: Is firmware update required for input state processing accuracy?A: Discrete input modules generally operate without field firmware updates; compatibility is determined by CPU and rack firmware baseline. Field Installation Guidelines Ensure 24 V DC input wiring conforms to standard industrial separation between field and logic circuits. Maintain shield continuity for input cable bundles where electromagnetic interference is present. Verify correct TSX rack slot insertion alignment prior to energization. Do not route input wiring parallel to high-frequency drive cables without physical separation. Confirm all field devices share common reference potential when using non-isolated input groups.
$200.00 $100.00
-
Schneider Electric 171CCC96020 M1/M1E Processor Adaptor Schneider Electric
Schneider Electric 171CCC96020 M1/M1E Processor Adaptor Configured for Ethernet-based I/O exchange and backplane data handling in Modicon Momentum automation platform, the Schneider Electric 171CCC96020 (M1/M1E processor adaptor) provides direct physical/electrical execution of processor-to-I/O bus communication. The module operates with an x86-based processing core at 50 MHz and supports Modbus TCP messaging over a single Ethernet interface. Backplane execution follows deterministic I/O scanning behavior within Momentum rack architecture, with firmware flash compatibility aligned to legacy ProWORX and Concept toolchains. Suffix Breakdown & Model Matrix The designation 171CCC96020 is a complete order code for the M1/M1E processor adaptor. No officially published sub-field segmentation or functional suffix decomposition is provided in the reference dataset. Therefore, no further structural breakdown is applied. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 171CCC96020 Weight 0.042 kg PowerConsumption 5.0 VDC (supplied via Momentum I/O base) Processor x86-based CPU (Intel/AMD class), 50 MHz Ethernet Interface 1 port, Modbus TCP capable I/O Bus 1 Momentum I/O backplane bus Program Memory 18 kB LL984 Data Memory 24 kB RAM / Flash 544 kB RAM / 512 kB Flash I/O Capacity 8192 I / 8192 O (bits), 26048 I/O registers Schneider Electric PLC Backplane Communication Behavior The module integrates into the Momentum rack backplane where cyclic scan execution is synchronized through deterministic I/O scheduling. Ethernet communication supports Modbus TCP messaging and I/O scanning services. Firmware behavior is compatible with ProWORX NxT, ProWORX 32, Modsoft (>= V2.5), and Concept V2.6 environments. The processor adaptor maintains I/O density scaling across distributed Momentum drops while preserving consistent register mapping across 16-bit word architecture. Firmware flash operations follow standard Momentum loader sequencing with backplane arbitration control. Frequently Asked Questions Q: Can the module be hot-replaced during system operation?A: The adaptor is not specified as hot-swappable. Removal typically requires rack power isolation to prevent backplane bus corruption. Q: What is the limitation of Ethernet communication on this device?A: Only one Ethernet port is available, supporting Modbus TCP messaging and I/O scanning; no redundant Ethernet interface is present. Q: How is I/O data mapped internally?A: I/O is mapped through register-based addressing up to 26048 I/O words, synchronized via Momentum backplane scan cycles. Field Installation Guidelines Install the processor adaptor only in a compatible Momentum rack with verified 5.0 VDC backplane supply integrity. Ensure all I/O modules are fully seated before energizing the system to prevent bus initialization faults. Maintain proper shielding and grounding of Ethernet cabling to reduce signal interference on Modbus TCP communication. Backplane connectors must be inspected for alignment prior to insertion to avoid pin damage. Avoid live insertion unless system architecture explicitly supports controlled rack hot swap procedures.
$200.00 $100.00
-
Schneider Electric Modicon Quantum Schneider Electric Remote I/O Fiber Optic 490NRP95400
Schneider Electric 490NRP95400 RIO Drop Module Configured for fiber optic remote I/O data exchange in Modicon Quantum RIO networks, the Schneider Electric 490NRP95400 (490NRP95400 RIO drop module) provides direct physical/electrical execution for distributed I/O node linking across Modicon Quantum backplane and remote fiber segments. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 490NRP95400 Origin US Weight 3.212 kg (7.08 lb) Dimensions 15 cm x 39.8 cm x 29.9 cm (Package 1) Product Function Fiber optic RIO drop interface module Network Type Modicon Quantum RIO network Communication Medium Fiber optic link Industrial Control Communication Behavior (Schneider Electric PLC Integration Layer) The Schneider Electric Modicon Quantum RIO architecture implements deterministic backplane bus communication between CPU racks and distributed remote I/O drops. The 490NRP95400 module functions as a fiber optic termination and relay node for remote rack segmentation, supporting synchronous I/O scanning across extended physical distances. Within Quantum systems, backplane bus cycle timing is dependent on CPU scan execution and RIO polling intervals. The module participates in cyclic I/O refresh propagation, where remote drops maintain slot-based addressing consistency across fiber segments. Firmware compatibility is aligned with Quantum series RIO communication stack, ensuring node-level synchronization during rack expansion or replacement operations. Signal integrity across fiber optic media is maintained through optical isolation of the RIO segment, reducing susceptibility to electrical noise coupling between distributed I/O cabinets. Frequently Asked Questions Q: Does the 490NRP95400 support hot-swap replacement in a live Quantum RIO network?A: Module replacement typically requires controlled rack power-down to preserve RIO node addressing integrity and avoid backplane resynchronization faults. Q: How is communication latency handled across fiber optic RIO drops?A: Latency is governed by Quantum RIO scan cycle timing rather than physical fiber propagation delay, as synchronization is cycle-driven at controller level. Q: Can multiple RIO drops be chained on a single fiber segment?A: Architecture supports segmented node distribution, but topology is constrained by Quantum RIO addressing and fiber network design rules. Field Installation Guidelines Fiber optic termination must follow clean connector handling procedures, ensuring dust-free mating surfaces prior to insertion. Minimum bend radius for fiber cables must be maintained according to industrial fiber handling standards to avoid attenuation loss. RIO drop addressing must be verified during commissioning to prevent node duplication within Quantum backplane configuration. Shielding is not required for fiber segments, but grounding of associated rack enclosures must be implemented to maintain system-wide equipotential bonding. During installation, ensure that module seating in the rack backplane is fully engaged to avoid intermittent RIO communication faults during scan cycles.
$200.00 $100.00
-
Schneider Electric 140CPU65150C Schneider Electric Modicon Quantum Unity Processor
Schneider Electric 140CPU65150C Unity Processor Modicon Quantum Configured for deterministic program execution in Modicon Quantum automation platform backplane architecture, the Schneider Electric 140CPU65150C (140CPU65150C Unity Processor) provides direct CPU-level scan control and communication arbitration across local and remote I/O racks within Quantum distributed control topology. The module operates as a Unity processor with 166 MHz clock frequency and 768 kB internal memory, coordinating process image handling, fieldbus routing, and multi-rack synchronization via Modbus Plus and Ethernet TCP/IP interfaces. Suffix Breakdown & Model Matrix No validated suffix segmentation data is defined for 140CPU65150C within the provided technical dataset. The model is treated as a single integrated orderable CPU unit within the Modicon Quantum CPU family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU65150C Processor Clock 166 MHz Memory 768 kB Local Rack Support 2 racks Slot Capacity Up to 16 slots (platform dependent configuration) Distributed I/O Up to 63 stations (Modbus Plus network dependent) Remote I/O Capacity S908 / Ethernet Quantum / X80 compatible Discrete I/O Handling Up to 31744 inputs / 31744 outputs (remote) Analog I/O Handling Up to 1984 inputs / 1984 outputs (remote S908) Communication Interfaces Ethernet TCP/IP, Modbus, Modbus Plus, USB Optional Modules Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) Schneider Electric Backplane Deterministic Execution Architecture The 140CPU65150C is integrated into the Modicon Quantum backplane bus system, where scan cycle execution is synchronized with rack-level arbitration logic. CPU-to-module communication is handled via deterministic backplane signaling, supporting predictable I/O refresh timing under mixed discrete and analog load conditions. Firmware execution model supports multi-network routing between Ethernet TCP/IP and Modbus Plus segments, enabling simultaneous local rack processing and distributed station coordination. I/O density scaling is managed at system level through rack expansion logic, allowing up to 31 remote drops per Ethernet Quantum topology depending on configuration constraints. Frequently Asked Questions Q: Does the 140CPU65150C support hot-swap of I/O modules?A: Hot-swap capability is dependent on Quantum rack backplane design and installed module type. CPU continues scan execution during non-disruptive module replacement only if system configuration supports rack-level isolation. Q: What is the backplane communication behavior under high I/O density?A: Backplane traffic is scheduled deterministically by CPU scan cycle. Increased I/O density results in longer scan times but does not alter arbitration structure. Q: Can Ethernet and Modbus Plus run simultaneously on this CPU?A: Yes. The processor supports concurrent Ethernet TCP/IP and Modbus Plus communication stacks with independent routing paths. Field Installation Guidelines Ensure that the CPU module is inserted into a properly grounded Modicon Quantum rack with verified backplane continuity. Shielded communication cabling must be terminated according to single-point grounding principles to avoid ground loop formation across Modbus Plus segments. Maintain separation between Ethernet and high-noise power conductors to preserve signal integrity. Backplane connectors must be fully seated to guarantee deterministic scan synchronization across all installed I/O modules.
$200.00 $100.00
-
Schneider Electric 140CPU11302 Schneider Electric Modicon Quantum Processor Module
Schneider Electric 140CPU11302 Processor Module Modicon Quantum Configured for deterministic PLC scan execution and serial/network communication handling in Modicon Quantum automation infrastructure, the Schneider Electric 140CPU11302 Modicon Quantum - 1 Modbus RS232, 1 Modbus Plus (80186 Processor Module) provides direct backplane-based control processing for I/O coordination and Modbus protocol execution across Quantum system racks. Suffix Breakdown & Model Matrix No formal suffix decomposition is defined in the provided dataset for this processor module. The designation is treated as a single fixed hardware identifier: 80186 within the Modicon Quantum processor family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU11302 Weight 0.3 kg (0.7 lb US) Dimensions Not specified in provided data OperatingTemp 0 to 60 degC PowerConsumption 780 mA backplane current requirement CPU Architecture 80186 microprocessor Clock Frequency 20 MHz Internal Memory 109 kB RAM Communication Ports 1 x Modbus RS232, 1 x Modbus Plus I/O Capacity 64 I/64 O local max, 64 I/64 O remote max Schneider Electric Backplane Communication & Modbus Execution Profile The module executes cyclic scan control via Modicon Quantum rack backplane arbitration, synchronizing distributed I/O words and remote drops through deterministic update cycles. Modbus RS232 is used for point-to-point serial data exchange, while Modbus Plus supports multi-drop network segmentation with token-based access control. Processor timing behavior is defined by 0.3 to 1.4 ms instruction execution characteristics (LL984 environment), enabling predictable scan loop sequencing. Battery-backed RAM supports parameter retention under power loss conditions, maintaining runtime integrity across restart cycles. Frequently Asked Questions Q1: Can the 80186 processor be hot-swapped in a live Quantum rack?A1: The module is not designed for hot-swap operation. Removal or insertion requires power-down of the rack backplane to avoid bus arbitration faults and memory state corruption. Q2: What is the backplane current impact of this processor?A2: The module requires approximately 780 mA from the Quantum backplane supply, which must be accounted for in total rack power budgeting. Q3: Does Modbus Plus operate independently of RS232 on this processor?A3: Yes. RS232 and Modbus Plus interfaces operate as independent communication channels managed by the processor’s dual-port communication handling logic. Field Installation Guidelines The processor must be installed into a fully de-energized Modicon Quantum rack. Ensure correct alignment of the backplane connector before insertion to prevent pin damage or bus misalignment. Shielded communication cabling is required for both RS232 and Modbus Plus segments, with shield termination at a single earth reference point to minimize ground loop currents. Maintain separation between communication wiring and high-voltage conductors to reduce electromagnetic coupling. Verify rack power budget compliance prior to energization, with special attention to cumulative backplane current loading. Battery module should be installed and verified for retention capability prior to commissioning.
$200.00 $100.00
-
Schneider Electric BMXDDI6402K Schneider Electric Modicon X80 Discrete Input Module
Schneider Electric BMXDDI6402K Discrete Input Module Configured for acquisition of 24 VDC discrete field signals in Modicon X80 backplane systems, the Schneider Electric BMXDDI6402K (BMXDDI6402K Discrete Input Module) provides direct physical/electrical execution for 64-channel digital input scanning across X80 distributed I/O architectures. The module operates as a 64-channel isolated input interface with positive logic current sink configuration, designed for 24 V DC sensor environments. Signal detection thresholds support standard industrial switching levels with diagnostic feedback per channel. Internal processing is synchronized via the X80 backplane with defined response time behavior for deterministic input acquisition. Suffix Breakdown & Model Matrix No explicit suffix segmentation or variant encoding is defined in the provided manufacturer dataset for BMXDDI6402K. The identifier is treated as a single fixed-order catalog number. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXDDI6402K Weight 0.145 kg OperatingTemp 0 degC to 60 degC PowerConsumption 4.3 W Input Channels 64 discrete inputs Input Type Isolated, current sink (positive logic) Input Voltage 24 V DC positive Input Current 0.6 mA Backplane Consumption 160 mA at 3.3 V DC Response Time 4 ms typical, 7 ms max Sensor Supply Range 19 V to 30 V DC Insulation Resistance > 10 MOhm at 500 V DC Schneider Electric X80 Backplane Input Architecture The module integrates into Modicon X80 rack systems using a high-speed backplane communication structure supporting synchronized I/O refresh cycles. Each channel is electrically isolated to reduce cross-channel interference under dense wiring conditions. Input filtering is implemented to stabilize signal acquisition under industrial noise conditions typical of distributed cabinet wiring. Channel diagnostics are individually indicated via per-point LEDs, enabling direct field-level fault localization without external test instrumentation. Backplane power draw at 3.3 V DC remains within low-load I/O module class consumption envelope (160 mA typical), supporting multi-module rack density planning. Frequently Asked Questions Q: Can the module be hot-swapped under energized rack conditions?A: The BMXDDI6402K supports Modicon X80 rack insertion/removal behavior when system configuration permits, however field power sequencing must follow backplane and rack manufacturer constraints to avoid transient I/O state instability. Q: Does channel isolation prevent cross-talk between adjacent inputs?A: Each input channel is isolated with internal impedance of approximately 40 kOhm and designed to limit electrical coupling between channels under 24 V DC switching conditions. Q: What is the impact of backplane load on multi-module configurations?A: Each module contributes approximately 160 mA at 3.3 V DC to the backplane load budget; total rack consumption must be aggregated across all installed X80 modules. Field Installation Guidelines DIN rail rack insertion shall be performed with backplane power removed unless system architecture explicitly supports live insertion procedures. Field wiring must maintain segregation between input signal bundles and power conductors to minimize inductive coupling. Shield termination should be implemented at cabinet ground reference points only, avoiding dual-ended grounding loops on 24 V DC discrete circuits. Channel grouping should respect fuse-protected input groups (0.5 A fast-blow external protection per group). Ambient installation must remain within 0 to 60 degC operating envelope with humidity control below condensation threshold conditions.
$200.00 $100.00
-
Schneider Electric Schneider Electric BMXDDO6402K Modicon X80 Discrete Output Module
Schneider Electric BMXDDO6402K Modicon X80 Discrete Output Module Configured for high-density digital switching of field actuators in Modicon X80 I/O architecture, the Schneider Electric BMXDDO6402K (BMXDDO6402K Discrete Output Module) provides direct physical/electrical execution of 24 VDC positive logic output commands across 64-channel backplane-controlled points. Suffix Breakdown & Model Matrix BMXDDO6402K is a single-order discrete output module designation within the Modicon X80 family.No validated manufacturer-published suffix segmentation beyond base functional code is available in the provided dataset. Hardware Specifications Parameter Specification Model BMXDDO6402K Brand Schneider Electric PowerConsumption 160 mA at 3.3 VDC (backplane supply) Output Type Solid-state discrete output Channels 64 Output Logic Positive Output Voltage 19...30 VDC (nominal 24 VDC) Output Current 0.1 A per channel Max Module Current 6.4 A Response Time 1.2 ms Paralleling Up to 3 outputs Protection Short-circuit, overload, overvoltage, reverse polarity Backplane Communication & Deterministic I/O Handling (Modicon X80 Platform Integration) The module operates as a backplane-driven discrete execution node within the Modicon X80 rack architecture. Output state transitions are synchronized through deterministic internal bus scanning, ensuring consistent update alignment across distributed rack modules. Channel update latency is governed by internal scan scheduling rather than field-side feedback loops. Electrical isolation and per-channel protection stages reduce cross-channel propagation effects under inductive switching conditions. Frequently Asked Questions Q: Can outputs be paralleled for higher current drive?A: Yes. Paralleling is supported up to 3 outputs, subject to shared load distribution and thermal dissipation constraints. Q: Does the module provide per-channel short-circuit shutdown?A: Yes. Each channel integrates electronic current limiting and fault isolation behavior using internal protection circuitry. Q: What is the response behavior under overload conditions?A: The output stage transitions into current-limited operation with protective cutoff behavior when thresholds are exceeded. Field Installation Guidelines The module shall be installed only in a compatible Modicon X80 rack with verified backplane alignment. Ensure correct seating to maintain signal integrity across the internal bus connector. Field wiring must comply with 24 VDC separation rules, maintaining segregation between power conductors and low-level control wiring. Inductive loads require external suppression elements to limit voltage transients during switching. Channel grouping for high duty-cycle loads should consider cumulative thermal loading across adjacent outputs. Shielding and grounding should be terminated according to cabinet-level equipotential bonding practice to reduce noise coupling into adjacent I/O modules.
$200.00 $100.00
-
Schneider Electric Schneider Electric Modicon X80 BMXAMM0600 Mixed Analog I/O Module
Schneider Electric BMXAMM0600 Mixed Analog I/O Module Configured for analog signal acquisition and conditioning in Modicon X80 backplane I/O architecture, the Schneider Electric BMXAMM0600 (BMXAMM0600 Mixed Analog I/O Module) provides direct physical/electrical execution of multi-range voltage and current measurements across distributed control racks. Suffix Breakdown & Model Matrix No structured suffix segmentation is defined for BMXAMM0600. The designation is treated as a single-order module identifier without documented sub-variant encoding. Hardware Specifications Parameter Specification Model BMXAMM0600 Brand Schneider Electric PowerConsumption Backplane supplied, value not specified Analog Inputs 4 channels Analog Outputs 2 channels Input Types 0-20 mA, 4-20 mA, 0-10 V, +/- 10 V, 0-5 V, 1-5 V Input Resolution 12 bit (current and low voltage ranges), up to 14 bit (+/- 10 V) Internal Conversion Resistor 250 ohm Filtering First-order digital filtering (firmware) Scan Cycle Time 5 ms for 4 channels nominal Fast Cycle Time 1 ms + 1 ms per active channel Input Overload Up to +/- 30 mA or +/- 30 V depending on range Electrical Connection 20-way connector Schneider Electric Backplane Acquisition Characteristics The BMXAMM0600 operates within Modicon X80 rack-based PLC architecture, where analog acquisition is synchronized through backplane bus communication cycles. Signal sampling is executed via firmware-controlled conversion sequencing, with deterministic scan timing dependent on active channel count. The module integrates mixed voltage/current conditioning without channel-to-channel galvanic isolation, requiring external field-side segregation for noise-sensitive installations. Backplane data exchange aligns with rack-level I/O refresh scheduling and firmware-driven acquisition buffering. Frequently Asked Questions Q: Can the BMXAMM0600 perform simultaneous sampling across all channels?A: No. Channel acquisition is multiplexed with firmware-controlled sequencing; effective update rate depends on configured channel usage. Q: Does the module provide galvanic isolation between channels?A: No. The input channels are non-isolated and share a common reference structure. Q: What is the impact of input overload conditions?A: Inputs tolerate defined overload ranges per signal type, but sustained overrange may affect measurement accuracy and conversion linearity. Field Installation Guidelines Install the module into a compatible Modicon X80 rack ensuring full seating on the backplane connector. Maintain separation between analog signal wiring and high-power conductors to reduce induced noise. Use shielded twisted-pair cabling for current and voltage inputs, with shield termination at a single earth reference point. Observe correct polarity for current loop inputs, especially 4-20 mA configurations. Ensure field wiring on the 20-way connector is tightened to manufacturer torque specifications and verify continuity before energization. Avoid routing analog inputs parallel to variable frequency drive output cables.
$200.00 $100.00
-
Schneider Electric Discrete Input Module Modicon X80 Schneider Electric BMXDDI3202K
Schneider Electric BMXDDI3202K Discrete Input Module Configured for acquisition of 24 V DC discrete field signals in Modicon X80 I/O architecture, the Schneider Electric BMXDDI3202K (BMXDDI3202K Discrete Input Module) provides direct physical/electrical execution within Modicon M340 and X80 backplane systems. The module processes 32 isolated positive logic inputs with sink-type current detection and channel-level diagnostics. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXDDI3202K Weight 0.112 kg PowerConsumption <= 3.9 W Input Channels 32 discrete inputs Input Type Isolated, current sink (positive logic) Input Voltage 24 V DC positive Input Current 2.5 mA Sensor Supply Range 19 to 30 V DC Filtering Time 4 ms typical, 7 ms max Insulation Resistance > 10 MOhm at 500 V DC Backplane Compatibility Modicon X80 platform PLC Backplane Communication and Signal Conditioning Behavior The Modicon X80 architecture associated with BMXDDI3202K implements deterministic backplane communication for cyclic I/O refresh across distributed input modules. Signal conditioning is performed via internal filtering stages with fixed 4 ms digital debounce logic, ensuring suppression of transient switching noise on 24 V DC field wiring. The module supports channel-level isolation to reduce cross-channel electrical coupling under high-density cabling layouts. Frequently Asked Questions Q: Can the BMXDDI3202K inputs be paralleled for higher current sensing?A: No. Input paralleling is not supported. Each channel operates with independent isolation and fixed impedance input circuitry. Q: What is the internal response delay of input signal detection?A: The module uses a 4 ms typical filtering time, with a maximum of 7 ms depending on signal stability. Q: Does the module support hot-swap insertion on the backplane?A: Hot-swap capability depends on the Modicon X80 rack configuration. Electrical isolation exists at channel level, but system-level insertion rules apply. Field Installation Guidelines Field wiring shall maintain separation between input signal cables and power conductors to minimize inductive coupling. Use shielded twisted pair conductors for long cable runs and terminate shields at a single-point earth reference. Ensure 24 V DC sensor supply remains within 19 to 30 V DC range under full load conditions. Verify correct polarity for positive logic sink configuration prior to energization. Maintain secure DIN rail seating and backplane connector alignment to avoid intermittent channel faults.
$200.00 $100.00
-
Schneider Electric Schneider Electric BMXAMO0802 Analog Output Module Modicon X80
Schneider Electric BMXAMO0802 Analog Output Module X80 The Schneider Electric BMXAMO0802 (BMXAMO0802 analog output module) serves as the primary BMXAMO0802 analog output module utilized to execute multi-channel current signal generation across Modicon X80 PLC platforms. Configured for deterministic analog signal actuation in rack-based I/O systems, the Schneider Electric BMXAMO0802 delivers 8-channel current output conversion with 16-bit resolution and rack-powered internal supply operation. Output scaling and diagnostic feedback are handled through backplane-controlled cyclic updates with configurable fallback behavior under fault conditions. Suffix Break down & Model Matrix No official structured suffix decoding or segmented model matrix information is provided in the supplied technical data for BMXAMO0802. The identifier is treated as a single catalog reference for the Modicon X80 analog output module family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXAMO0802 Origin Not specified in provided data Weight 0.15 kg PowerConsumption Internal rack supply (value not specified) Analog Output Channels 8 Output Types 0-20 mA, 4-20 mA Output Resolution 16 bits Conversion Time <= 4 ms Load Impedance <= 350 Ohm Output Range Up to 21 mA (overrange capability) Isolation 1400 VDC channel to ground, 1400 VDC channel to bus Crosstalk Attenuation 80 dB minimum Common Mode Rejection 80 dB Temperature Drift 45 ppm per degC Measurement Error <= 0.25 percent FS (0 to 60 degC), 0.1 percent FS at 25 degC Diagnostics Open circuit detection (4-20 mA), short circuit detection (0-20 mA) Status Indication RUN, ERR, I/O, per-channel LED indicators Operating Altitude 0 to 2000 m, derating 2000 to 5000 m PLC Backplane Output Control and Deterministic Update Behavior The BMXAMO0802 module operates through Modicon X80 backplane communication cycles where analog setpoints are transferred as digital words and converted via 16-bit DAC stages into loop current outputs. The conversion pipeline is synchronized with rack scan timing, maintaining a maximum conversion latency of 4 ms per update cycle. Channel outputs are non-isolated between each other, therefore signal integrity depends on internal grounding architecture and crosstalk attenuation performance of 80 dB. The module implements diagnostic monitoring for open loop and short circuit conditions, enabling fault-state substitution via configurable fallback mode. Backplane integration ensures deterministic update behavior across PLC task cycles, with output regeneration linked directly to CPU scan scheduling and I/O refresh synchronization. Frequently Asked Questions Q: Does the BMXAMO0802 support hot swapping during rack operation?A: The module is designed for rack-based installation; hot swapping depends on system configuration and rack power management state. Electrical reconnection during active loop current should be avoided. Q: What happens if a 4-20 mA loop is broken?A: The module detects open circuit conditions in 4-20 mA mode and triggers diagnostic status via channel LED and system feedback. Q: Is channel-to-channel isolation present in this module?A: No. Channels are non-isolated; isolation is provided only between channels and ground/bus at 1400 VDC level. Field Installation Guidelines Ensure rack power is isolated before module insertion or removal to prevent transient backplane disturbance. Field wiring for current outputs must maintain correct polarity and loop integrity, especially for 4-20 mA transmitter-driven loads. Use shielded twisted pair conductors for analog output loops, with shield termination performed at a single system ground reference point to reduce induced noise coupling. Keep output wiring separated from high-frequency switching or power conductors. Verify load impedance does not exceed 350 Ohm per channel to maintain output accuracy and DAC linearity. Incorrect loading may result in clipping at maximum output current levels.
$200.00 $100.00
-
Schneider Electric Schneider Electric BMXAMI0810 | Modicon M340 Analog Input Module
Schneider Electric BMXAMI0810 Analog Input Module Configured for multi-range analog signal acquisition in Modicon M340 backplane architectures, the Schneider Electric BMXAMI0810 (BMXAMI0810 analog input module) provides direct physical/electrical execution for conditioned voltage and current measurement within PLC I/O subsystems. The module supports isolated 8-channel acquisition with mixed voltage and current input compatibility and deterministic backplane transfer behavior. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXAMI0810 Analog Input Channels 8 isolated inputs Input Types 0-20 mA, 4-20 mA, +/- 20 mA, 0-10 V, 0-5 V, +/- 10 V, +/- 5 V, 1-5 V Input Resolution 16-bit ADC, 15-bit + sign Input Impedance 10 MOhm Internal Conversion Resistor 250 Ohm Accuracy 0.1 percent, 15 ppm per degC Filtering First-order digital filtering Fast Cycle Time 1 ms + 1 ms x number of active channels Nominal Cycle Time 9 ms for 8 channels Input Isolation Channel-to-channel isolated architecture Overload Limits Up to +/- 30 mA or +/- 30 V depending on input type PLC Backplane Signal Processing Characteristics The BMXAMI0810 module integrates into the Modicon M340 backplane communication structure, where sampled analog data is digitized through a 16-bit conversion stage and transferred via deterministic internal bus cycles. Channel scanning is sequenced with a time-sliced acquisition model, enabling predictable latency scaling based on active channel count. The isolation topology ensures separation between field wiring and internal logic domain, reducing coupling effects during multi-channel simultaneous sampling. Mixed-mode voltage and current acquisition is handled through internal scaling paths, including a precision 250 Ohm conversion resistor path for current loop translation into voltage domain prior to ADC conversion. Frequently Asked Questions Q: Can individual channels be configured for different input ranges simultaneously?A: Yes. Each channel supports independent configuration across supported voltage and current input ranges, subject to module configuration within the PLC engineering environment. Q: What is the impact of channel count on acquisition cycle time?A: Fast cycle time increases linearly as 1 ms per additional active channel plus a 1 ms base overhead, affecting total scan latency. Q: Is the module electrically isolated between channels?A: Yes. The architecture provides isolated input structure to reduce cross-channel electrical interaction during simultaneous sampling. Field Installation Guidelines Field wiring shall maintain separation between analog input conductors and power or high-frequency switching lines. Shielded twisted pair cabling is required for current loop and low-level voltage signals, with shield termination performed at a single reference ground point. Ensure that input scaling configuration matches field transmitter output type (0-20 mA, 4-20 mA, or voltage-based sources) prior to commissioning. Overvoltage and overcurrent limits must be respected according to declared input protection thresholds to avoid ADC front-end stress. Backplane insertion must be performed with power removed from the rack to ensure connector alignment integrity and avoid transient backfeed into the module logic domain.
$200.00 $100.00
-

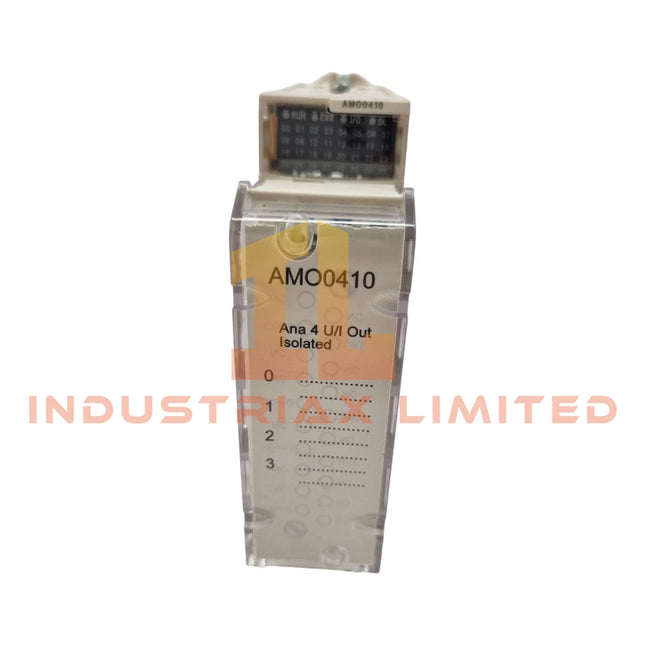

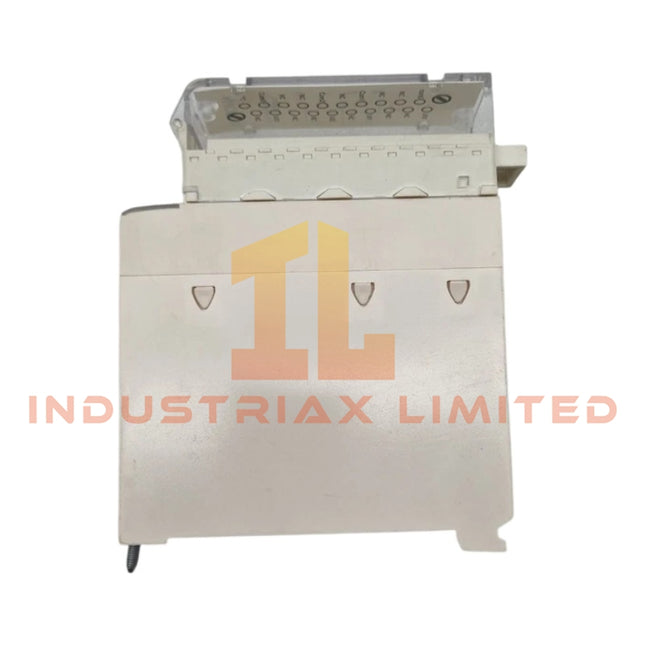

Schneider Electric Schneider Electric BMXAMO0410 Modicon X80 Analog Output Module
Schneider Electric BMXAMO0410 Modicon X80 Analog Output Module Configured for analog signal generation in Modicon X80 I/O backplane systems, the Schneider Electric BMXAMO0410 (BMXAMO0410 Analog Output Module) provides direct physical/electrical execution. Schneider Electric Schneider Electric integrates this module within the Modicon X80 architecture for deterministic analog voltage and current output conversion across four isolated channels. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXAMO0410 Origin France Weight 0.15 kg Dimensions Not specified in provided data OperatingTemp 0 to 60 degC (accuracy range) PowerConsumption 3 W typical, 3.2 W max (24 VDC) Analog Outputs 4 channels Output Types 0-20 mA, 4-20 mA, +/-10 V Resolution 15 bits + sign Conversion Time <= 1 ms Channel Isolation 750 V DC to 1400 V DC depending path Load Resistance <= 500 ohm (current), >= 1000 ohm (voltage) Backplane Integrated Signal Processing Architecture (PLC I/O Determinism) The BMXAMO0410 operates on the Modicon X80 backplane communication structure, where output frames are scheduled via rack-based internal power and data distribution. The module converts digital process values into analog electrical outputs with deterministic refresh behavior aligned to PLC scan cycles. Channel-to-channel galvanic isolation reduces cross-channel interference under mixed current/voltage configurations, supporting stable output integrity under high-density I/O racks. Within Schneider Electric PLC architectures, backplane exchange timing and firmware synchronization govern update consistency. The module maintains fixed conversion latency behavior (<= 1 ms) independent of output load variation, ensuring predictable analog reconstruction for actuator loop interfaces and field instrumentation scaling. Frequently Asked Questions Q: Does the BMXAMO0410 support hot-swap operation within Modicon X80 racks?A: The module is designed for rack insertion in Modicon X80 systems; hot-swap behavior depends on rack controller configuration and backplane power management rules. Q: What is the isolation boundary between channels and system ground?A: Electrical isolation is specified up to 1400 V DC between channels and bus, and up to 750 V DC channel-to-channel depending configuration path. Q: Can voltage and current outputs be used simultaneously?A: Output type selection is channel-configurable, but each channel operates in a single defined mode (voltage or current) during runtime. Field Installation Guidelines Install module into Modicon X80 compatible rack slot with power removed from backplane. Ensure proper alignment of the 20-way connector to avoid pin deformation during insertion. Maintain shield grounding continuity for analog signal cables at cabinet entry point. Separate analog output wiring from high-frequency switching conductors to reduce coupling noise. Verify load impedance compliance before energizing current or voltage loops. Observe rack ventilation requirements to maintain thermal stability during continuous operation.
$200.00 $100.00
-

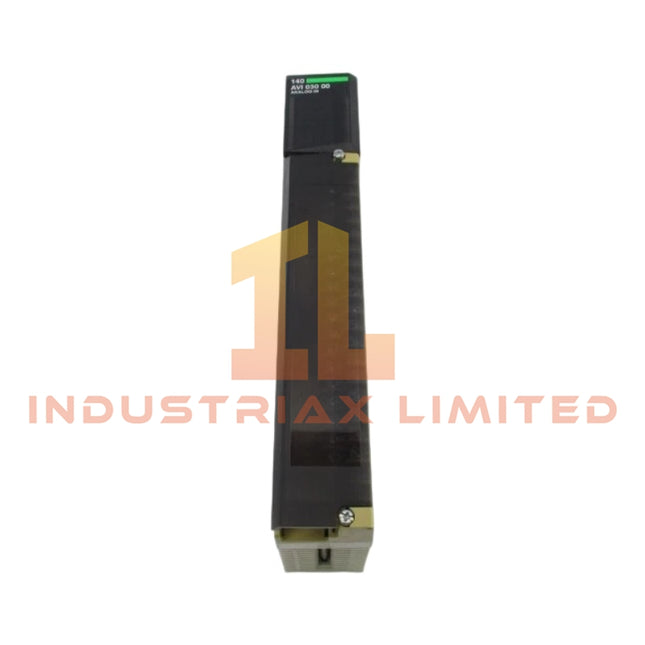

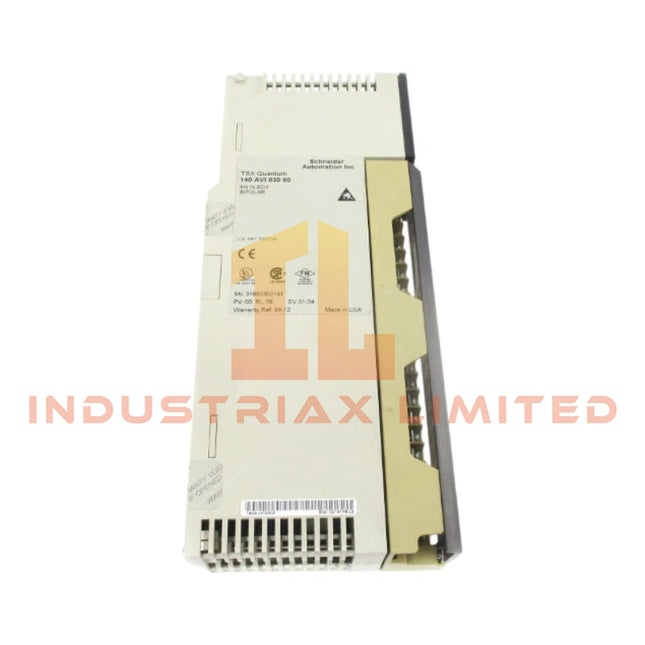

Schneider Electric 140AVI03000 Schneider Electric Modicon Quantum Analog Input Module
Schneider Electric 140AVI03000 Analog Input Module Configured for multi-range analog signal acquisition in Modicon Quantum backplane I/O architecture, the Schneider Electric 140AVI03000 (140AVI03000 Analog Input Module) provides direct physical/electrical execution for 8-channel differential voltage and current measurement within Modicon Quantum automation platforms. The module implements 16-bit conversion per channel with configurable bipolar and unipolar ranges including 0-5 V, 0-10 V, +/-5 V, +/-10 V, 0-20 mA, and 4-20 mA-compatible measurement modes. Input filtering is realized via single-pole low-pass response with -3 dB cutoff at 847 Hz +/- 20 percent. Channel-to-backplane isolation is rated up to 500 Vrms for 60 s, supporting segmented field wiring integrity under high common-mode conditions. Suffix Breakdown & Model Matrix 140AVI03000 is a fixed-order analog input module identifier within the Modicon Quantum AVI series. 140: Modicon Quantum hardware family prefix AVI: Analog Voltage/Current Input class 03000: Specific configuration identifier for 8-channel multirange differential input design Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140AVI03000 Origin France Weight 0.3 kg PowerConsumption 2.2 W Analog Input Channels 8 differential Input Types +/-10 V, +/-5 V, 0-10 V, 0-5 V, 0-20 mA Resolution 16 bit Update Time 10 ms Input Impedance > 20 MOhm (voltage) Bus Current 280 mA Isolation 500 Vrms (channel to bus, 60 s) Linearity Error +/- 0.008 percent Accuracy Drift up to 0.004 percent per degC PLC Backplane Deterministic I/O Behavior (Schneider Electric Quantum Class) Within Modicon Quantum backplane architecture, the AVI input module exchanges digitized process values via cyclic bus scheduling. Backplane communication timing is deterministic under rack scan execution, with each input word mapped into a 9-word addressing structure. The module maintains channel independence via galvanic separation, minimizing cross-channel interference under mixed voltage/current configurations. Firmware-level scaling supports linear conversion mapping across full input span without external signal conditioning. Frequently Asked Questions Q: Does the module support simultaneous mixed voltage and current inputs across channels?A: Yes. Each of the 8 differential channels is individually configurable for voltage or current input mode within supported ranges. Q: What is the backplane load contribution of this module?A: The module draws 280 mA from the Quantum backplane power bus under nominal operating conditions. Q: Is hot swapping supported during runtime?A: Hot insertion is dependent on rack configuration; backplane power integrity and system state must be evaluated before module replacement. Field Installation Guidelines Maintain shield continuity across analog input cabling and terminate shields at a single system ground reference point. Avoid routing low-level analog signal lines parallel to high-voltage or high-frequency switching conductors. Ensure differential input pairs are kept twisted and length-matched to reduce common-mode noise coupling. Backplane insertion must be performed with rack power disabled unless system architecture explicitly supports live insertion. Verify channel configuration scaling parameters prior to energizing field loops.
$200.00 $100.00
-

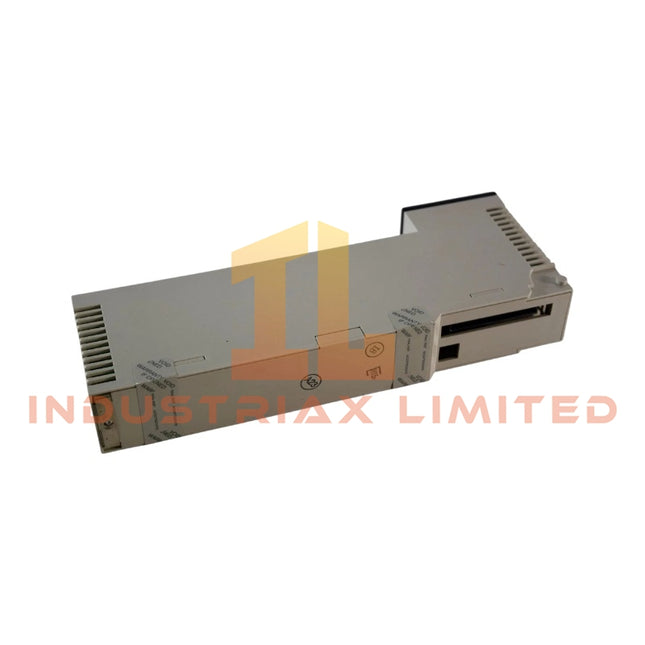

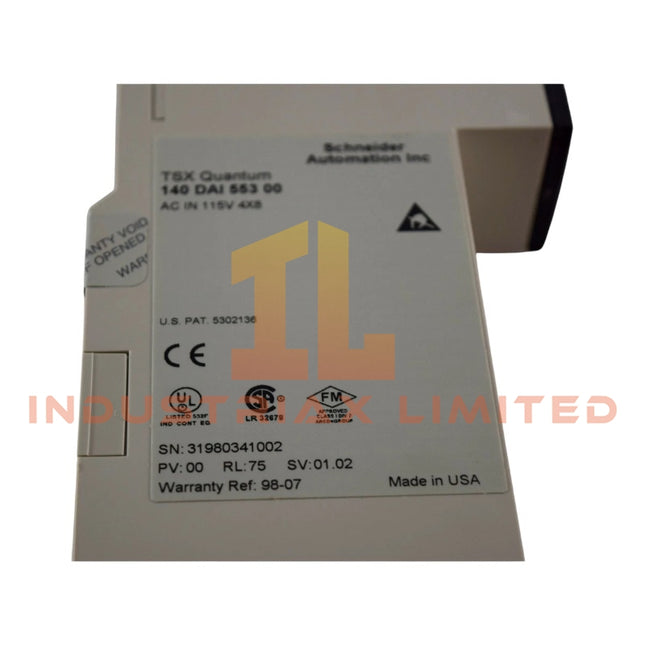

Schneider Electric Schneider Electric 140DAI55300 Modicon Quantum Discrete Input Module
Schneider Electric 140DAI55300 Modicon Quantum Discrete Input Module Configured for high-voltage digital acquisition in the Modicon Quantum automation platform, the Schneider Electric 140DAI55300 (base model 140DAI553) provides direct physical/electrical execution of 32-channel 115 V AC discrete input sensing into the backplane bus. Hardware Specifications Parameter Specification Brand Schneider Electric Origin France Weight 0.33 kg Dimensions Standard Quantum module format Operating Temp 0...60 degC Power Consumption <= 10.9 W Discrete Input Number 32 Input Voltage 115 V AC Input Current <= 13.2 mA @ 47...53 Hz; <= 11.1 mA @ 57...63 Hz Guaranteed State 1 Voltage 85...132 V AC @ 47...53 Hz; 79...132 V AC @ 57...63 Hz Guaranteed State 0 Voltage 0...20 V AC @ 47...63 Hz Input Impedance 14400 Ohm capacitive @ 47...53 Hz; 12000 Ohm capacitive @ 57...63 Hz Network Frequency Limits 47...63 Hz Leakage Current <= 2.1 mA Absolute Max Input 200 V for 1 cycle; 156 V for 10 s; 132 V continuous Response Time 7.3...12.3 ms On-Off; 4.9...0.75 ms x line cycle Off-On Isolation 1780 Vrms group-to-group & group-to-bus for 1 min Bus Current Requirement 250 mA Indicators 32 green LEDs (input status), 1 red LED (external fault), 1 green LED (bus active) Certifications CUL, FM Class 1 Div 2, CSA C22.2 No 142, UL 508 Backplane Bus Communication Velocity Licensing The 140DAI55300 interfaces with the Quantum backplane via a parallel data bus governed by firmware flash compatibility constraints. Module addressing consumes two input words, requiring precise allocation in the controller memory map. Firmware revisions must match the licensing profile of the installed CPU to ensure deterministic scan updates without introducing propagation delays in high-speed logic execution. Frequently Asked Questions Q: Can the 140DAI55300 be hot-swapped while the Quantum rack is powered? A: Hot-swap capability depends strictly on the host rack’s power supply and CPU firmware version. Verify the CPU supports live insertion before attempting removal or replacement under load. Q: What is the maximum backplane current load imposed by this module? A: The module draws up to 250 mA from the backplane bus at rated conditions. Ensure total rack consumption does not exceed the power supply rating. Q: Does this module support mixed AC frequencies in different channel groups? A: No. All inputs must operate within the same configured frequency range (47...53 Hz or 57...63 Hz). Mixed frequency operation is not supported. Field Installation Guidelines Mount the module on a standard 35 mm DIN rail or directly into a Quantum rack slot. Ensure all field wiring uses shielded twisted pair cabling, with the shield terminated to earth ground at the panel entry only. Maintain separation of at least 75 mm between AC input wiring and low-voltage signal cables to prevent inductive coupling. Torque terminal screws to the manufacturer’s specified value (typically 0.5…0.6 N·m). Confirm proper grounding of the rack chassis before applying power.
$200.00 $100.00
-

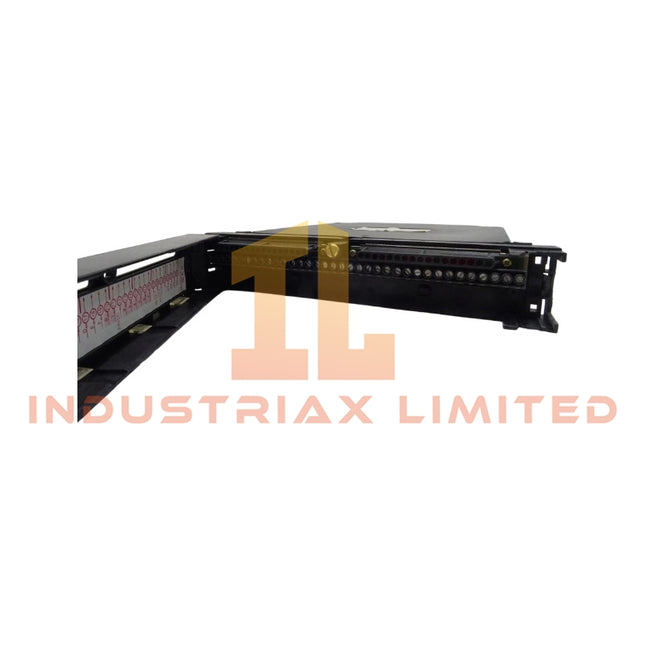

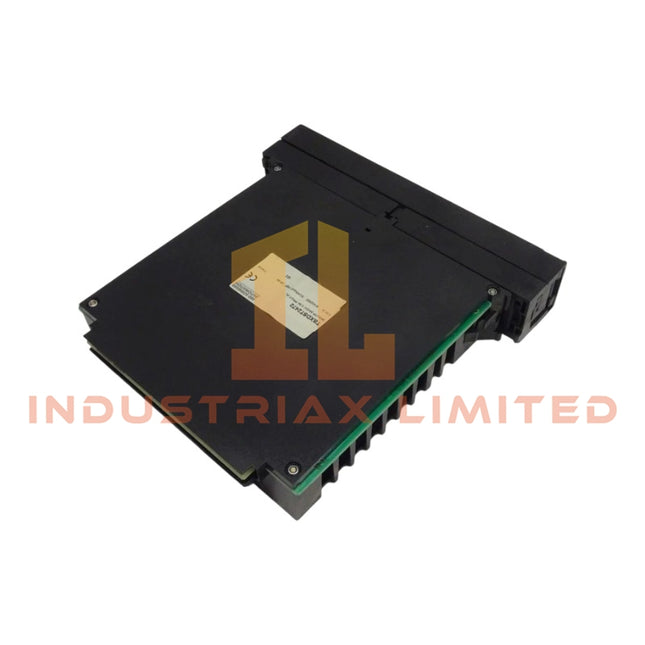

Schneider Electric Digital Output Modules | Schneider Electric Modicon TSXDST2472
Schneider Electric TSXDST2472 Digital Output Modules Configured for discrete signal actuation in Modicon backplane I/O architectures, the Schneider Electric TSXDST2472 (TSXDST2472 Output Module) provides direct electrical switching of field devices through 24 V DC digital output channels across rack-based PLC systems. Suffix Breakdown & Model Matrix No explicit suffix segmentation or functional variant coding is defined for TSXDST2472 in the provided specification set. The designation is treated as a single fixed module identifier within the Modicon output module family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXDST2472 Origin France Weight 1.25 lbs (0.57 kg) Dimensions Not specified OperatingTemp 0 degC to 60 degC Output Type Discrete (Digital) Output Points 24 channels Output Voltage 24 V DC Output Current per Point 0.5 A Total Output Current 8 A max Isolation Channel to logic isolation Response Time < 1 ms Protection Short-circuit and overload Frequently Asked Questions Q: Does the TSXDST2472 support hot-swap insertion under live backplane power?A: Hot-swap capability is not specified. Standard practice requires power isolation of the rack before module insertion or removal to prevent backplane disturbance. Q: What is the output switching behavior during PLC scan cycle jitter?A: Output state updates are synchronized to the backplane scan cycle. Any jitter is constrained by CPU scan timing and rack communication scheduling. Q: Can channels operate independently under partial overload conditions?A: Yes. Each channel includes individual short-circuit and overload protection, limiting fault impact to the affected output point only. Field Installation Guidelines Ensure DIN rail or rack mounting alignment is mechanically secured before applying backplane connection force. Verify 24 V DC field wiring polarity prior to energization. Maintain separation between output wiring harnesses and high-noise conductors to reduce induced coupling on fast-switching channels. Shield grounding should be terminated at a single reference earth point to avoid circulating ground currents across the output cabinet. Do not exceed 0.5 A per channel or 8 A total module load. Allow sufficient ventilation spacing within the rack to maintain thermal stability within 0 degC to 60 degC operating limits.
$200.00 $100.00
-

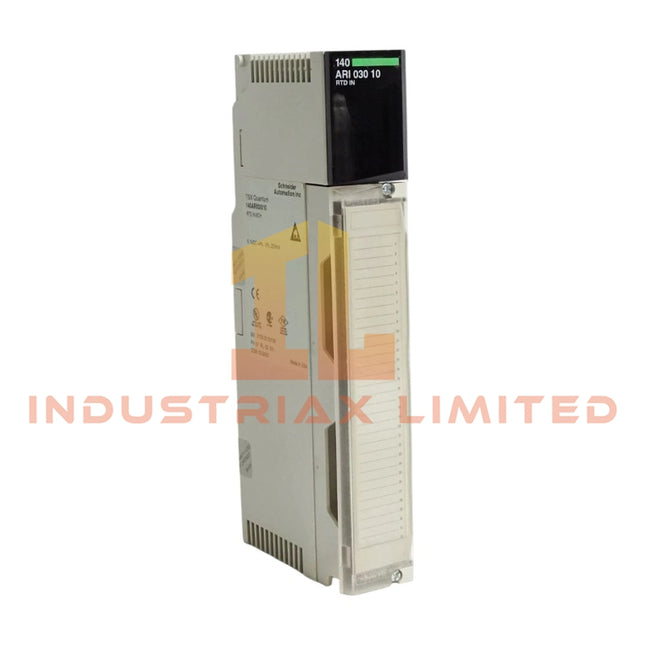

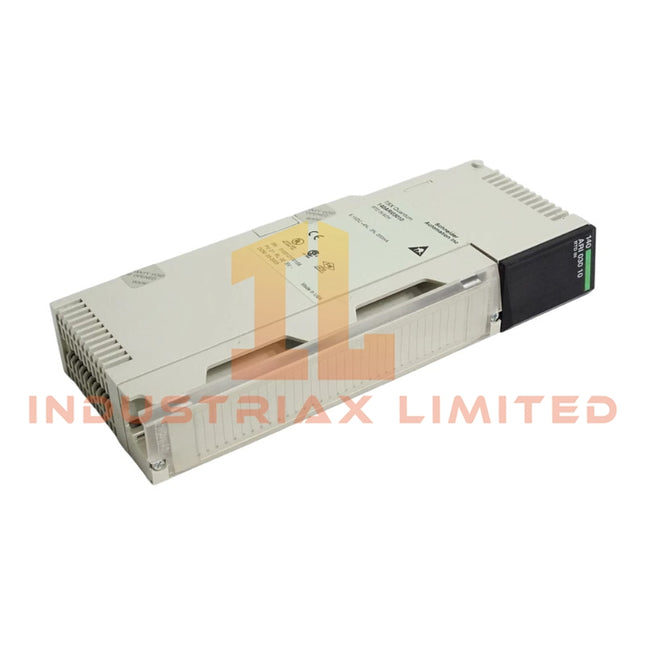

Schneider Electric Schneider Electric 140ARI03010 Modicon Quantum Analog Input Module
Schneider Electric 140ARI03010 Modicon Quantum Analog Input Module Configured for resistance temperature input acquisition in Modicon Quantum automation architecture, the Schneider Electric 140ARI03010 (140ARI03010 analog input module) provides direct physical/electrical execution for multi-channel RTD signal conversion across Quantum backplane systems. Suffix Breakdown & Model Matrix No explicit manufacturer-supplied suffix segmentation or functional sub-code breakdown is defined for 140ARI03010 in the provided technical dataset. The full ordering code is treated as a single functional identifier for an 8-channel RTD analog input module within the Modicon Quantum family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140ARI03010 Weight 0.3 kg Dimensions Standard Modicon Quantum rack module form factor (exact mm not specified) OperatingTemp 0 to 60 degC (drift referenced range) PowerConsumption 1 W Input Channels 8 differential RTD inputs Input Types Pt100, Pt200, Pt500, Pt1000, Ni100, Ni200, Ni500, Ni1000 Resolution 13 bits Isolation 1780 VAC / 2500 VDC bus isolation, 300 Vrms channel isolation Update Time 640 ms (2/4-wire), 1200 ms (3-wire) Schneider Electric Quantum Backplane Signal Processing Characteristics The 140ARI03010 module integrates into Modicon Quantum backplane architecture with deterministic I/O word mapping (9 input words addressing requirement). Backplane communication supports synchronized acquisition cycles aligned with rack-level scan execution, enabling stable I/O density scaling across multi-slot configurations. Firmware-level compatibility is aligned with Quantum rack communication services, supporting consistent module recognition during hot insertion under system power constraints. Channel-level galvanic separation is implemented between field inputs and system bus, reducing cross-channel electrical interaction under mixed RTD wiring topologies (2-wire, 3-wire, and 4-wire configurations). Signal conditioning logic applies linearization and scaling for both platinum and nickel RTD curves across extended temperature domains. Frequently Asked Questions Q: Can the module operate mixed RTD types simultaneously across channels?A: Yes. Each of the 8 channels can be independently configured for Pt or Ni sensor types, provided wiring configuration matches selected input mode. Q: What is the effect of 3-wire RTD configuration on update time?A: 3-wire acquisition mode increases processing cycle time to approximately 1200 ms due to additional compensation computation per channel. Q: Does the module support hot-swap replacement on the Quantum backplane?A: Hot-swap behavior depends on rack configuration and system power state; electrical isolation prevents channel damage but scan interruption occurs during module reinsertion. Field Installation Guidelines Ensure rack backplane is de-energized when inserting or removing module unless system supports controlled hot-swap procedures. Maintain correct RTD wiring topology (2-wire, 3-wire, or 4-wire) per channel configuration to avoid measurement drift. Use shielded twisted pair cables for all temperature probe inputs, with shield grounded at a single point on cabinet earth bar. Verify channel addressing allocation (9 input words) in Quantum configuration software prior to commissioning. Avoid routing RTD signal lines parallel to high voltage or high frequency switching conductors to reduce induced noise coupling.
$200.00 $100.00
-

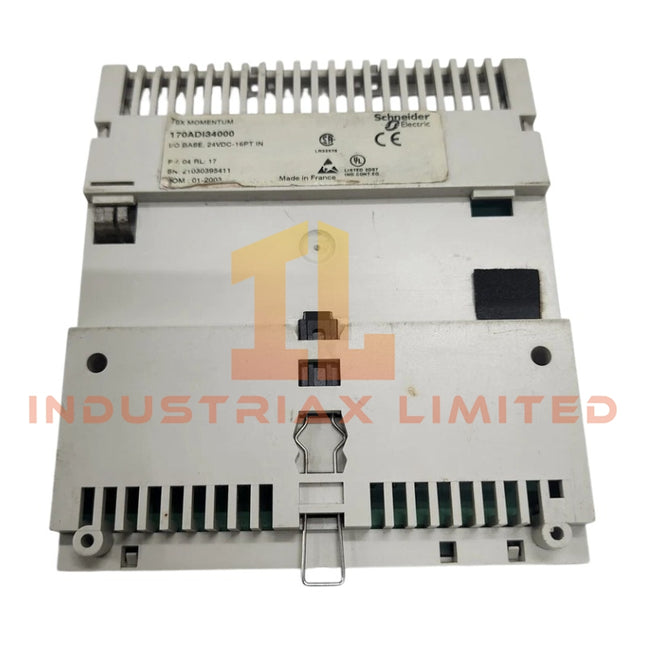

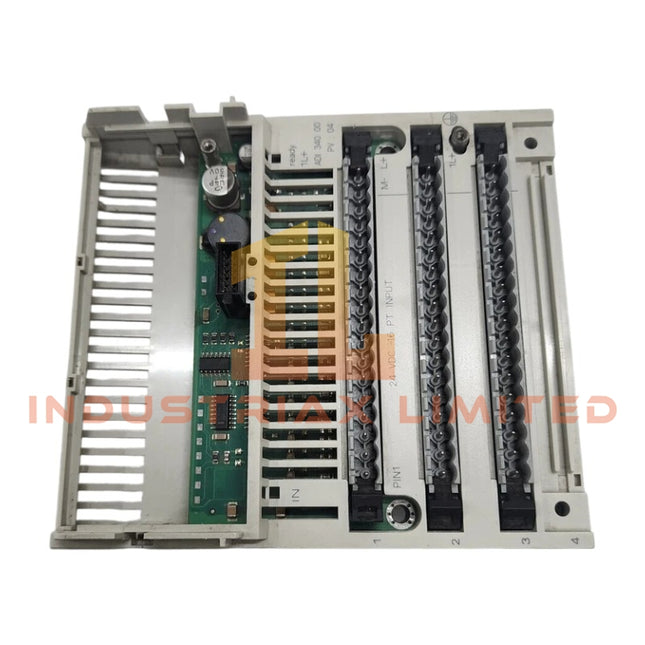

Schneider Electric Schneider Electric 170ADI34000 Modicon Momentum Discrete Input Module
Schneider Electric 170ADI34000 Modicon Momentum Discrete Input Module The Schneider Electric 170ADI34000, also cataloged as the 170ADI34000 Discrete Input Module, operates as a dedicated hardware component for processing 24 VDC discrete signals within Modicon Momentum automation platforms. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 170ADI34000 Origin France Weight 0.35 kg Dimensions 120 mm x 50 mm x 80 mm OperatingTemp 0…60 degC StorageTemp -40…85 degC RelativeHumidity 95% non-condensing OperatingAltitude ≤ 5000 m InputType Discrete DC InputChannels 16 channels InputVoltage 24 VDC VoltageLimits -3…30 V VoltageState0 -3…5 V VoltageState1 11…30 V CurrentState0 ≤ 1.2 mA CurrentState1 ≥ 2.5 mA InputResistance 4 kOhm ResponseTime0to1 2.2 ms ResponseTime1to0 3.3 ms Isolation 500 V AC between channels and bus PowerDissipation 5 W max, 3 W typical ProtectiveTreatment TC Certifications FM Class 1 Division 2, CSA, UL EMCResistance 10 V/m 80…1000 MHz ESDResistance 4 kV contact, 8 kV air Industrial Control Features The module supports deterministic backplane bus communication velocity and ensures compatibility with Profinet/EtherNet/IP networks for high-speed data transfer. Firmware flash updates are supported without requiring full system shutdown. Channel-to-channel isolation mitigates signal interference and maintains consistent digital input accuracy. Odensity scaling is applied to ensure uniform input signal resolution across the 16 channels. Frequently Asked Questions Q: Can the 170ADI34000 module be hot-swapped?A: Hot-swap is not supported; the module must be powered down before replacement to maintain bus integrity. Q: What is the maximum backplane load for the module?A: The module draws a nominal 3 W and must be integrated within the overall Momentum backplane power budget. Q: Are firmware upgrades compatible across all Momentum backplane revisions?A: Firmware is backward compatible with Momentum platforms but requires adherence to Schneider Electric’s versioning guidelines. Field Installation Guidelines Ensure DIN-rail mounting is secure and level to prevent mechanical stress. Connect discrete inputs using shielded twisted pair cables; ground shields at one end only. Maintain a minimum spacing of 5 mm between signal and high-voltage lines to reduce crosstalk. Avoid routing input cables near power switching devices or variable frequency drives. Verify correct polarity for 24 VDC inputs before energizing the module.
$200.00 $100.00
-

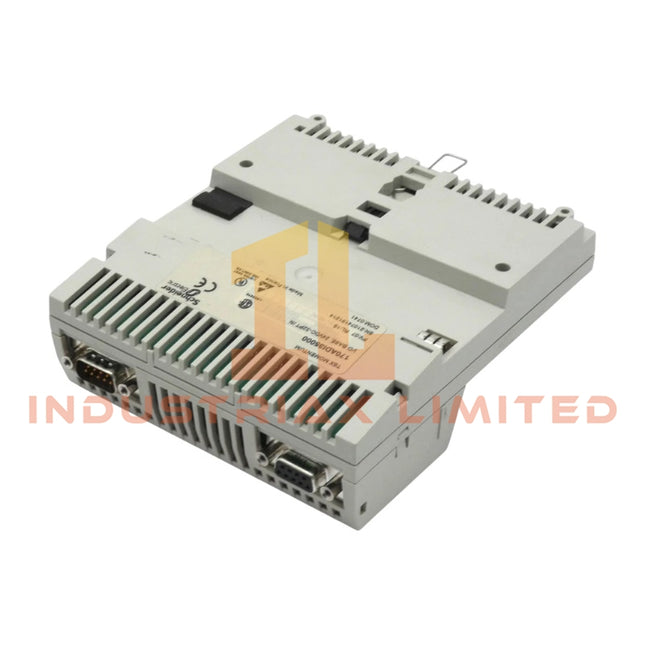

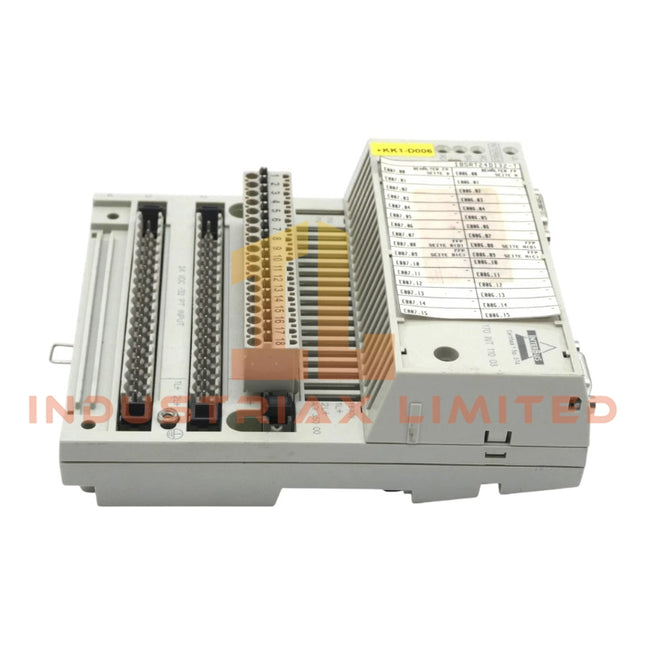

Schneider Electric Discrete I/O Module Modicon Momentum Schneider Electric 170ADM35010
Schneider Electric 170ADM35010 Modicon Momentum Discrete I/O Module Configured for discrete signal acquisition and switching in Modicon Momentum backplane architectures, the Schneider Electric 170ADM35010 (170ADM35 Discrete Solid State I/O Base) provides direct physical/electrical execution for 24 VDC digital input and output interfacing within Momentum distributed I/O networks. Suffix Breakdown & Model Matrix 170ADM35: Base series identifier for Momentum discrete I/O base 010: Specific configuration variant within 16 I/O solid-state DC module family Momentum platform designation: Modular distributed I/O system architecture Hardware Specifications Parameter Specification ModelBrand Schneider Electric 170ADM35010 Input Channels 16 inputs (IEC 1131-2 Type 1) Input Voltage 24 VDC (range -3 to 30 V) Input Logic Positive logic Input Current Threshold 0: <= 1.2 mA, 1: >= 2.5 mA Output Channels 16 solid-state outputs Output Grouping 2 groups of 8 outputs Output Voltage 24 VDC (<= 30 VDC max) Output Current 0.5 A per point, 4 A per group, 8 A per module Leakage Current < 1 mA per output circuit Peak Output Current 5 A Schneider Electric PLC Backplane & Deterministic I/O Behavior Within Modicon Momentum architectures, the 170ADM35010 executes cyclic I/O refresh through backplane bus communication, where deterministic scan timing governs input latching and output state propagation. The module interfaces with controller-level scheduling via internal rack arbitration, ensuring predictable state update sequencing across distributed I/O segments. Firmware-level compatibility is aligned with Momentum platform configuration tools, supporting parameter download and module mapping via system-level configuration. Backplane communication velocity and I/O refresh rate are dependent on host processor scan cycle and rack topology, with deterministic behavior maintained under standard PLC scan execution. Frequently Asked Questions Q: Does the 170ADM35010 support hot-swap replacement under live backplane power conditions?A: The module is designed for Momentum rack integration; hot-swap behavior depends on system configuration and backplane power segmentation. Electrical arcing risk must be evaluated at rack level. Q: What is the output load limitation per channel group?A: Output grouping is rated at 4 A per group and 0.5 A per individual point, with total module limit of 8 A under DC solid-state switching conditions. Q: How does input filtering affect signal stability?A: Input logic uses IEC 1131-2 Type 1 thresholds with defined voltage windows, providing noise immunity against floating or undefined 24 VDC field signals. Field Installation Guidelines Mount module into Modicon Momentum backplane ensuring full connector seating to avoid intermittent bus communication faults Maintain shielded wiring for 24 VDC input lines where electromagnetic interference is present Observe group current limits to prevent thermal accumulation in solid-state output stages Verify correct polarity for positive logic input configuration prior to energization Ensure adequate spacing for thermal dissipation in dense rack assemblies
$200.00 $100.00
-

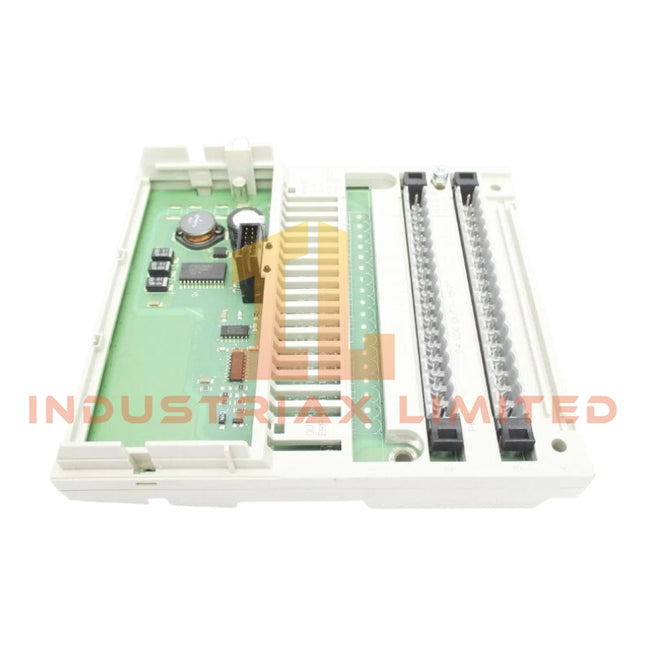

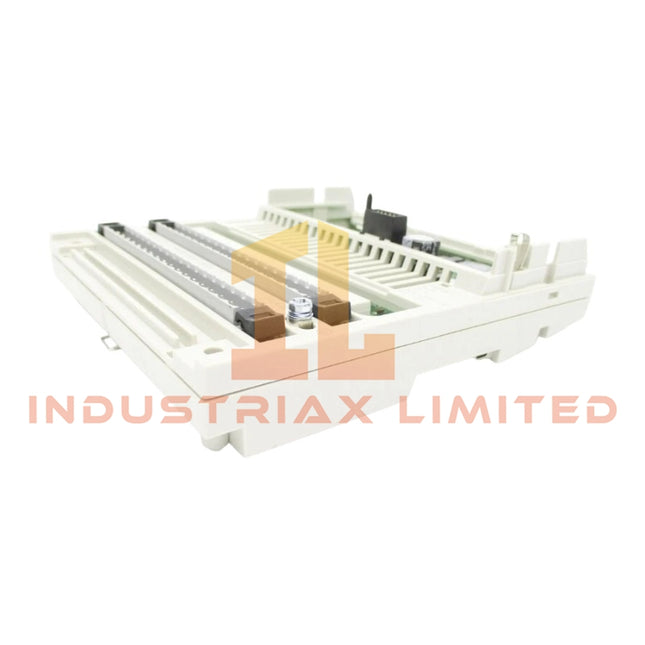

Schneider Electric Discrete Output Module Modicon Momentum Schneider Electric 170ADO34000
Schneider Electric 170ADO34000 Momentum Discrete Output Module The Schneider Electric 170ADO34000 also cataloged as the 170ADO34000 discrete output module operates as a dedicated hardware component for electrical switching of field actuators within the Schneider Electric Modicon Momentum I/O architecture. Configured for 24 VDC solid-state output execution in distributed backplane systems, the 170ADO34000 (170ADO34000 discrete output base DC) provides direct channel-level switching across 16 isolated output points. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 170ADO34000 PowerConsumption 3.5 W typical / 4.5 W max Output Channels 16 (2 groups of 8) Output Type Solid state switch Output Voltage 24 VDC Current per Channel 0.5 A Group Current 4 A per group Module Current 8 A total Response Time 0.1 ms (ON/OFF) Isolation 500 VAC channel-to-bus Protection Electronic short-circuit and overload protection PLC Backplane Communication and Output Execution Profile Within the Modicon Momentum distributed control topology, the 170ADO34000 module operates via backplane-bus synchronized output refresh cycles, where deterministic scan alignment governs output state transitions across 16 channels. The module supports high-speed digital actuation with 0.1 ms state change latency, optimized for tight I/O coupling in modular PLC racks. Channel grouping architecture (8+8 segmentation) enables localized current distribution across backplane power domains, reducing thermal concentration per output bank. Frequently Asked Questions Q: Can the 170ADO34000 outputs be hot-swapped under load conditions?A: The module is not designed for live hot-swap of field loads. Removal under energized output conditions may cause transient backplane disturbance and undefined output states. Q: What is the limitation of channel-to-channel isolation?A: Output channels share group-level architecture; isolation is provided to backplane (500 VAC), but channels within the same group are not individually galvanically isolated. Q: How does the module handle inductive load switching?A: External suppression (flyback diode or RC snubber) is required. Internal protection is limited to electronic short-circuit detection and shutdown. Field Installation Guidelines Ensure 24 VDC supply stability before insertion into the Modicon Momentum backplane. Maintain separation between field wiring and logic wiring to minimize capacitive coupling across output groups. Shielded cabling is recommended for long-run inductive loads, with single-point grounding at the cabinet earth bar. Do not exceed 0.5 A per channel or 4 A per output group. Verify output polarity consistency prior to energization to prevent reverse conduction stress on solid-state switching elements.
$200.00 $100.00
-

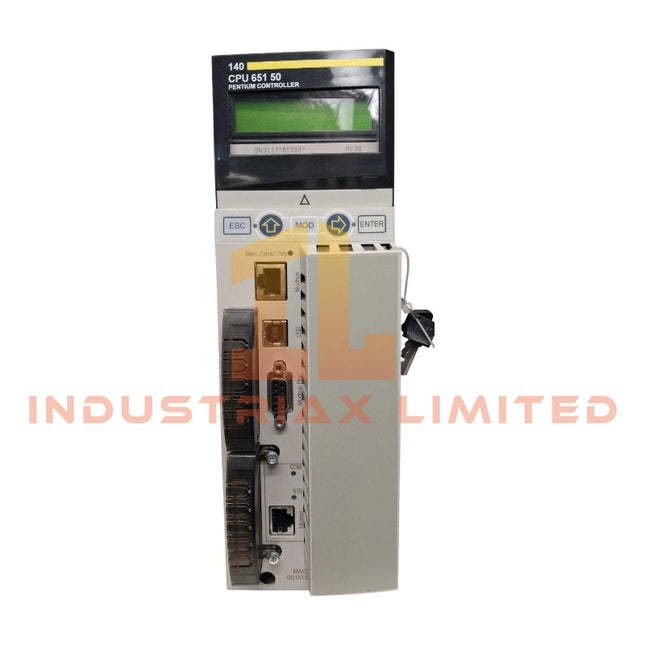

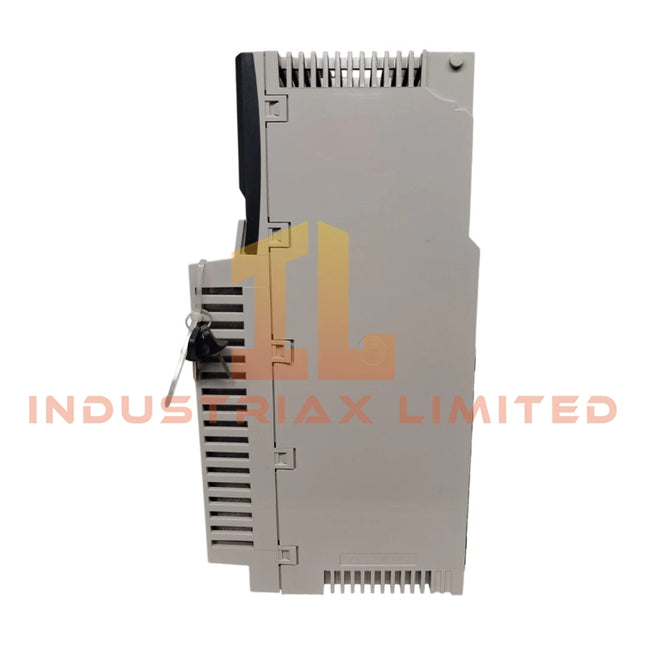

Schneider Electric Schneider Electric 140CPU65150 Modicon Quantum Unity Processor
Schneider Electric 140CPU65150 Modicon Quantum Unity Processor Configured for deterministic execution of PLC scan cycles in Modicon Quantum automation platform backplane architecture, the 140CPU65150 (140CPU65150 Unity processor) provides direct CPU-level processing and communication handling for distributed I/O and remote rack synchronization within Quantum chassis systems. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU65150 Origin France / EU manufacturing lineage (Quantum platform) OperatingTemp Industrial standard PLC module range (exact limits not provided) CPU Clock Frequency 166 MHz Memory 768 kB Local Rack Capacity Up to 2 racks Slot Configuration 10 / 16 / 2 / 4 / 6 slots (rack dependent configuration) Distributed I/O Up to 63 stations per network Remote I/O Up to 31 stations Discrete I/O Capacity 8000 inputs / 8000 outputs (distributed), 31744 inputs / 31744 outputs (remote) Analog I/O Capacity 500 inputs / 500 outputs (distributed), 1984 inputs / 1984 outputs (remote) Integrated Interfaces Ethernet TCP/IP, Modbus, Modbus Plus, USB Backplane Bus Communication and Firmware Execution Model The 140CPU65150 executes cyclic task scheduling through Quantum backplane arbitration, where memory exchange between CPU and I/O modules is synchronized via deterministic scan intervals. Firmware execution supports multi-interface routing across Modbus, Modbus Plus, and Ethernet TCP/IP stacks, enabling parallel handling of process data and diagnostic frames. Backplane throughput is governed by slot addressing density and rack segmentation rules, with firmware compatibility tied to Unity processor runtime image alignment. Frequently Asked Questions Q: Can the 140CPU65150 support hot-swapping of I/O modules?A: Hot-swap capability depends on rack configuration and module type. CPU operation continues during limited module replacement, but backplane re-enumeration is required for full synchronization. Q: What is the effect of adding distributed I/O stations on scan cycle time?A: Increasing distributed stations introduces additional communication overhead on network arbitration layers, impacting cyclic scan time proportional to station count and protocol load. Q: Does firmware mismatch affect backplane communication stability?A: Yes. Firmware version mismatch between Unity processor and module firmware may result in partial enumeration failure or restricted communication mapping. Field Installation Guidelines The 140CPU65150 shall be installed on a grounded Quantum backplane with controlled torque insertion to avoid slot connector deformation. Shielded communication cables must maintain single-point grounding at cabinet earth reference to prevent differential noise across Modbus and Ethernet segments. Backplane slots must remain within rated configuration limits (maximum rack slot population as defined by chassis type). Excessive slot loading can introduce signal propagation delay and backplane arbitration latency. Ethernet and Modbus cabling shall be physically separated from high-voltage conductors to minimize inductive coupling. Maintain minimum bend radius according to industrial Ethernet cabling standards. Firmware upload operations should be executed under stable DC supply conditions with uninterrupted backplane power to avoid memory corruption during flash cycles.
$200.00 $100.00
-

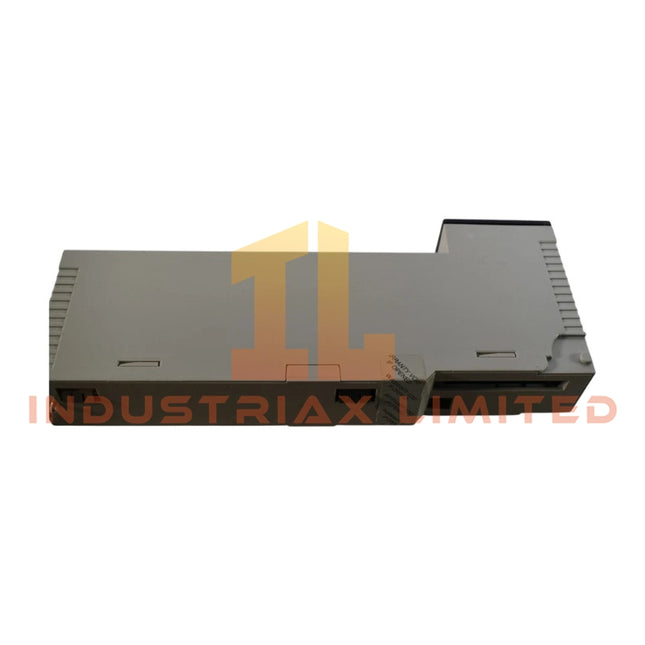

Schneider Electric Schneider Electric Modicon Quantum 140ACO13000 Analog Output Module
Schneider Electric 140ACO13000 Analog Output Module Configured for analog current output signal generation in Modicon Quantum backplane I/O network, the Schneider Electric 140ACO13000 (140ACO13000 Analog Output Module) provides direct physical/electrical execution. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140ACO13000 Weight 0.3 kg PowerConsumption 5 W max dissipation Analog Output Channels 8 outputs Output Types 0-20 mA, 0-25 mA, 4-20 mA current loops Resolution 0-20000 / 0-25000 / 0-16000 / 0-4095 counts Loop Voltage 6-30 V DC Isolation 1780 V AC for 1 minute (channel to bus) Update Time 5 ms Settling Time 1.6 ms to 5 percent, 3.2 ms to 0.1 percent Accuracy +/- 0.2 percent full scale at 25 degC Temperature Drift 0.004 percent FS per degC typical Backplane Bus Communication and Deterministic Control Behavior Within the Schneider Electric Modicon Quantum architecture, the 140ACO13000 module exchanges output words via the backplane I/O bus with 8-word addressing allocation. The deterministic scan cycle is synchronized with Quantum rack communication timing, ensuring fixed update behavior independent of field load conditions. Firmware-level backplane arbitration manages channel refresh sequencing across all 8 analog outputs without inter-channel timing skew beyond module update time limits. Channel scaling is executed locally, reducing controller-side computational overhead during cyclic task execution. Frequently Asked Questions Q: Can the module outputs be configured independently per channel?A: Yes. Each of the 8 channels supports independent range selection including 0-20 mA, 0-25 mA, or 4-20 mA scaling mapped into digital counts. Q: What happens under open loop conditions in 4-20 mA mode?A: The module implements open-circuit detection and flags a channel fault via diagnostic LED and bus status bit. Q: Is hot-swap supported on the Quantum backplane for this module?A: The module supports rack insertion/removal according to Quantum backplane rules; field loop current should be removed prior to module replacement. Field Installation Guidelines Maintain shield continuity for all analog current loops and terminate cable shielding at a single reference ground point to prevent ground loop formation. Ensure loop power supply remains within 6-30 V DC under full load conditions across all 8 channels. Backplane connector seating must be fully engaged to guarantee stable 1780 V AC isolation integrity. Avoid routing analog output conductors parallel to high-frequency switching lines or motor drive cabling to reduce induced coupling noise on 4-20 mA loops.
$200.00 $100.00
You have seen 24 out of 2142 products
